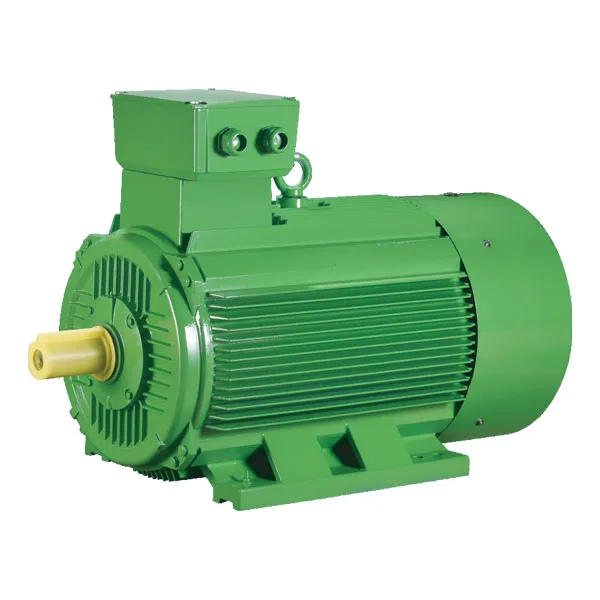

Name: AИP GOST Three-Phase Induction Motor
Brand: Shandong Ouruian Electric Co., Ltd.
Availability: InStock

Features of AИP GOST Three-Phase Induction Mot

The rated power and installation dimensions comply with GOST standards;
Rated voltage of 220V/380V(56-112);
380/660V(132-355) rated voltage;
Rated frequency 50Hz;
F-class insulation;
IP54/55 protection level;
C411 cooling method.

Technical Parameter of AИP GOST Three-Phase Induction Mot

Model	PH, KBT	N,o6,/MNH	3ΦΦeKTNBHOCTb	cosΦ	IHA(U=380B)	In/IH	Mm/MH	Mn/MH	Macca, KT
Model	Rated Power KW	Rated Power 1/min	Effciency %	Powerfactor	In A(U=380B)	Is/In	Tmax/Tn	Ts/Tn	Effciency %
2P=2, n=3000 o6, MNH
AИP56A2	0.18	2700	65.7	0.77	0.55	5.3	2.2	2.2	4.7
AИP56A2	0.18	2700	65.7	0.77	0.55	5.3	2.2	2.2	4.7
AИP56B2	0.25	2720	68.0	0.78	0.73	5.3	2.2	2.2	5.1
AИP63A2	0.37	2730	69.7	0.81	1	5.7	2.2	2.2	5.5
AИP63B2	0.55	2770	72.7	0.82	1.4	5.7	2.3	2.2	6.4
AИP71A2	0.75	2820	74	0.83	1.9	6.1	2.3	2.2	8.5
AИP71B2	1.1	2790	77.6	0.83	2.7	6.7	2.3	2.2	9.6
AИP80A2	1.5	2830	78.1	0.84	3.6	7.0	2.3	2.2	15.5
AИP80B2	2.2	2840	80.6	0.85	5	7.0	2.3	2.2	19.5
AИP90L2	3.0	2845	83.4	0.86	6.5	7.2	2.3	2.2	25.4
AИP100S2	4.0	2870	83.7	0.88	8.4	7.5	2.3	2.2	33
AИP100L2	5.5	2870	84.8	0.89	11	7.5	2.3	2.2	38
AИP112M2	7.5	2880	85.4	0.88	15.2	7.2	2.4	2.2	49
AИP132M2	11	2900	87.4	0.9	21.8	7.2	2.3	2.2	83
AИP160S2	15	2925	88.4	0.88	30	7.1	2.4	2.2	120
AИP160S2	15	2925	88.4	0.88	30	7.1	2.4	2.2	120
AИP160M2	18.5	2925	89.3	0.89	36.3	7.1	2.4	2.2	140
AИP180S2	22	2940	89.8	0.9	42.7	7.2	2.5	2	170
AИP180M2	30	2940	90.7	0.9	56.9	7.3	2.5	2.1	203
AИP200M2	37	2940	91.2	0.89	71	7.1	2.4	2.1	247
AИP200L2	45	2945	91.8	0.89	84.9	7.1	2.4	2.1	255
2P=2, n=3000 o6, MNH
AИP225M2	55	2960	92	0.9	103	7.1	2.4	2.1	325
AИP250S2	75	2970	92.6	0.9	139	6.9	2.6	2	450
AИP250M2	90	2970	92.5	0.9	167	6.4	2.5	2	530
AИP280S2	110	2970	93.4	0.91	201	6.7	2.3	1.9	650
AИP280M2	132	2975	93.5	0.91	240	6.4	2.4	1.9	700
AИP315S2	160	2975	94.4	0.91	289	6.7	2.3	1.9	1170
AИP315M2	200	2975	94.7	0.92	358	6.6	2.3	1.9	1460
AИP355S2	250	2980	95.4	0.92	433	6.9	2.2	1.7	1930
AИP355M2	315	2980	95.6	0.92	548	6.9	2.2	1.7	2300

Model	PH, KBT	N,o6,/MNH	3ΦΦeKTNBHOCTb	cosΦ	IHA(U=380B)	In/IH	Mm/MH	Mn/MH	Macca, KT
Model	Rated Power KW	Rated Power 1/min	Effciency %	Powerfactor	In A(U=380B)	Is/In	Tmax/Tn	Ts/Tn	Effciency %
2P=4, n=1500 o6, MNH
AИP56A4	0.12	1325	56.5	0.66	0.5	4.6	2.2	2.1	4.5
AИP56B4	0.18	1325	61.2	0.68	0.7	4.9	2.2	2.1	5.1
AИP63A4	0.25	1325	64.5	0.73	0.82	5.1	2.2	2.1	5.6
AИP63B4	0.37	1325	66.3	0.76	1.12	5.1	2.2	2.1	6.4
AИP71A4	0.55	1350	70	0.73	1.75	5.4	2.3	2.2	8.2
AИP71B4	0.75	1360	71.3	0.77	2.2	5.7	2.3	2.2	9.6
AИP71B4	0.75	1360	71.3	0.77	2.2	5.7	2.3	2.2	9.6
AИP80A4	1.1	1375	74.5	0.76	3.04	5.8	2.3	2.3	16
AИP80A4	1.1	1375	74.5	0.76	3.04	5.8	2.3	2.3	16
2P=4, n=1500 o6, MNH
2P=4, n=1500 o6, MNH
AИP80B4	1.5	1390	77.5	0.78	3.95	6.2	2.3	2.3	19.5
AИP80B4	1.5	1390	77.5	0.78	3.95	6.2	2.3	2.3	19.5
AИP90L4	2.2	1400	80	0.81	5.3	6.8	2.3	2.3	25
AИP100S4	3	1420	81.4	0.82	7.2	7.0	2.3	2.3	34
AИP100L4	4	1420	82.8	0.81	9.5	7.0	2.3	2.3	37
AИP112M4	5.5	1430	84.1	0.82	12.3	6.6	2.3	2.3	55
AИP132S4	7.5	1440	86	0.84	16.1	6.7	2.3	2.2	76
AИP132M4	11	1450	87.1	0.84	23.1	6.8	2.3	2.2	88
AИP160S4	15	1455	88.7	0.85	30.8	6.8	2.3	2.2	138
AИP160M4	18.5	1455	89.8	0.86	37.8	6.8	2.3	2.2	142
AИP180S4	22	1465	90.6	0.86	44.4	7.0	2.4	2.1	177
AИP180M4	30	1465	91.2	0.86	59.6	6.8	2.3	2.1	190
AИP200M4	37	1470	92	0.87	3.1	7.0	2.3	2.2	247
AИP200L4	45	1465	92.3	0.87	88.4	6.9	2.4	2.2	260
AИP225M4	55	1480	92.4	0.87	106	6.7	2.3	2.2	326
AИP225M4	55	1480	92.4	0.87	106	6.7	2.3	2.2	326
AИP250S4	75	1475	92.9	0.86	146	6.9	2.3	2.2	477
AИP250S4	75	1475	92.9	0.86	146	6.9	2.3	2.2	477
AИP250M4	90	1475	93.3	0.87	170	6.4	2.4	2.2	485
AИP250M4	90	1475	93.3	0.87	170	6.4	2.4	2.2	485
AИP280S4	110	1480	93.8	0.88	207	6.6	2.2	2.1	731
AИP280M4	132	1480	93.8	0.88	244	6.7	2.3	2.3	710
AИP315S4	160	1480	94.8	0.89	297	6.8	2.4	2.3	1053
AИP315M4	200	1480	95	0.89	369	6.4	2.4	2.2	1243
AИP355S4	250	1490	95.4	0.9	443	6.7	2.4	2.1	1745
AИP355M4	315	1490	95.6	0.9	558	6.7	2.4	2.1	1957

Model	PH, KBT	N,o6,/MNH	3ΦΦeKTNBHOCTb	cosΦ	IHA(U=380B)	In/IH	Mm/MH	Mn/MH	Macca, KT
	Rated Power KW	Rated Power 1/min	Effciency %	Powerfactor	In A(U=380B)	Is/In	Tmax/Tn	Ts/Tn	Effciency %
2P=6, n=1000 o6, MNH
AИP63A6	0.18	860	55.5	0.64	0.8	4.1	2	1.9	6.4
AИP63B6	0.25	860	58.3	0.65	1.1	4.0	2	1.9	7.2
AИP71A6	0.37	895	62.8	0.68	1.33	4.7	2	1.9	8.8
AИP71B6	0.55	895	65.7	0.7	1.9	4.7	2	1.9	9.8
AИP80MA6	0.75	910	69	0.72	2.29	5.3	2.1	2	16.7

AИP80MB6	1.1	910	72.1	0.74	3.18	5.3	2.1	2	20

AИP90L6	1.5	920	76	0.74	4.2	6.0	2.1	2	25

AИP100L6	2.2	930	77.1	0.76	5.9	6.3	2.1	2	38

AИP112MA6	3	935	80.1	0.76	7.9	5.7	2.2	2.1	46

AИP112MB6	4	935	80.7	0.77	10.3	5.7	2.1	2.1	50
AИP132S6	5.5	955	82.8	0.78	13.4	6.3	2.1	2.1	75
AИP132M6	7.5	960	84.1	0.8	17.2	6.2	2.2	2.1	87
AИP160S6	11	965	86.8	0.79	24.6	6.3	2.2	2	141
AИP160M6	15	965	88.2	0.81	33	6.5	2.2	2	155
2P=6, n=1000 o6, MNH
AИP180M6	18.5	970	88.9	0.82	39	6.6	2.1	2.1	200
AИP200M6	22	975	89.7	0.83	45.2	6.3	2.2	2.1	233
AИP200L6	30	975	89.8	0.84	61.8	6.5	2.2	2.1	250
AИP225M6	37	980	91.3	0.85	73.5	6.6	2.1	2.1	360
AИP250S6	45	980	92	0.85	90.1	6.7	2.2	2.1	465

AИP250M6	55	985	92.4	0.84	110	6.8	2.3	2.2	520

AИP280S6	75	985	93	085	150	6.6	2.1	2	800

AИP280M6	90	985	92.9	0.85	177	6.6	2.2	2.2	800

AИP315S6	110	985	94.2	0.86	207	6.3	2.2	2	1045
AИP315M6	132	985	94.4	0.87	244	6.1	2.2	2	1103
AИP355S6	160	990	94.7	0.87	292	6.6	2.2	1.9	1748
AИP355M6	200	990	94.7	0.87	364	6.7	2.2	1.9	1934
AИP355MB6	250	990	95.2	0.88	451	6.6	2.5	1.9	2050

Model	PH, KBT	N,o6,/MNH	3ΦΦeKTNBHOCTb	cosΦ	IHA(U=380B)	In/IH	Mm/MH	Mn/MH	Macca, KT
	Rated Power KW	Rated Power 1/min	Effciency %	Powerfactor	In A(U=380B)	Is/In	Tmax/Tn	Ts/Tn	Effciency %
2P=8, n=750 o6, MNH
AИP71B8	0.25	655	54.5	0.6	1.17	3.7	1.9	1.8	9.1
AИP80MA8	0.37	675	60.1	0.62	1.5	4.3	1...9	1.8	18
AИP80MB8	0.55	675	62.9	0.62	2.18	4.0	2	1.8	18.9
AИP9OLA8	0.75	685	72.4	0.7	2.33	4.0	2	1.9	30
AИP100L8	1.1	685	73	0.69	3.27	4.0	2	1.9	26

AИP100L4	1.5	690	73.5	0.72	4.5	4.7	2	1.9	38
AИP112MA8	2.2	700	75.6	0.71	6.4	4.9	2.1	2	46

AИP112MB8	3	700	76.9	0.71	8.6	5.0	2.1	2	53
AИP132S8	4	715	81.9	0.78	10.8	5.6	2.1	2.1	82

AИP132M8	5.5	715	80.9	0.74	14.7	5.6	2.1	2.1	90
AИP160S8	7.5	720	85.2	0.74	19.2	5.8	2.1	2	148

AИP160M8	11	720	86.4	0.76	27.3	5.8	2.1	2	155
AИP180M8	15	725	87.6	0.78	34.5	6.2	2	2	210
AИP200M8	18.5	730	89	0.78	41.6	6.2	2.1	1.9	250

AИP200L8	22	730	89.6	0.78	49.4	6.2	2.1	2	260
AИP225M8	30	735	90.6	0.78	65.3	6.5	2.1	2	360

AИP250S8	37	735	90.5	0.77	82.1	6.2	2.3	2.1	465
AИP250M8	45	735	91.5	0.77	99.1	6.2	2.3	2.1	520

AИP280S8	55	735	92	0.8	121	6.0	2	1.9	725
AИP280M8	75	740	92	0.81	154	5.8	2.1	1.9	800

AИP315S8	90	740	93.8	0.82	178	6.2	2.3	2	1160
AИP315M8	110	740	94	0.82	217	6.1	2.2	2	1175

AИP355S8	132	740	93.9	0.82	261	6.3	2.2	1.7	2000
AИP355M8	160	740	94.3	0.82	306	6.3	2.2	1.7	2150
AИP355MB8	200	740	94.7	0.83	386	6.5	2.5	1.8	2250

2P=10, n=600 o6, MNH
AИP250S10	22	585	86	0.7	55.5	6.0	2	1.6	475

AИP250M10	30	585	88.5	0.7	73.6	6.0	2	1.6	535
AИP280S10	37	590	89	0.7	90.2	6.0	2	1.6	720

AИP280M10	45	590	91	0.72	110	6.0	2	1.6	835
AИP315S10	55	590	92	0.75	121	6.2	2	1.5	1150

AИP315M10	75	590	92.5	0.76	162	6.2	2	1.5	1220
AИP355S10	90	590	92.8	0.77	192	6.1	2	1.4	2080
AИP355MA10	110	590	93.2	0.78	230	6.0	2	1.3	1800

AИP355MB10	132	590	93.5	0.78	275	6.0	2	1.3	2500
AИP355M10	160	590	93.5	0.78	333	6.0	2	1.3	2500

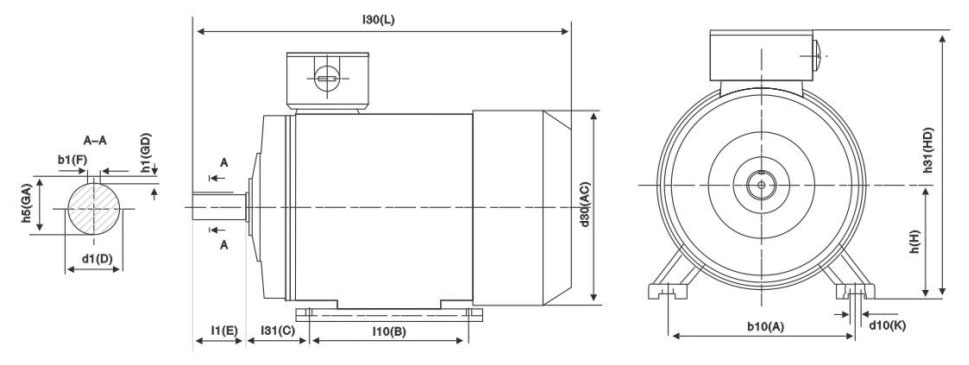

External dimensions

Type	Poles	Overall dimensions(mm)			Mounting dimensions(mm)
		130	h31	d30	b10	b11	l10	l11	l31	D1	l1	b1	h5	h1	h	d10
		L	HD	AC	A	AB	B	BB	C	D	E	F	GA	GD	H	K
AИP56A	24	216	165	120	90	113	71	90	36	11	23	4	12.5	4	56	5.8
AИP56N	24	216	165	120	90	113	71	90	36	11	23	4	12.5	4	56	5.8
AИP63A	2,4,6	250	180	136	100	124	80	102	40	14	30	5	16	4	63	5.8
AИP63B	2,4,6	250	180	136	100	124	80	102	40	14	30	5	16	4	63	5.8
AИP71A	2,4,6	295	205	155	112	155	90	120	45	19	40	5	21.5	5	71	7
AИP71B	2,4,6,8	295	205	155	112	155	90	120	45	19	40	5	21.5	5	71	7
AИP80A	2,4,6,8	320	230	176	125	160	100	130	50	22	50	6	24.5	6	80	10
AИP80B	2,4,6,8	350	230	176	125	160	100	140	50	22	50	6	24.5	6	80	10
AИP90LA	2,4,6,8	380	245	185	140	176	125	170	56	24	50	8	27	7	90	10
AИP90LB	8	380	245	185	140	176	125	170	56	24	50	8	27	7	90	10
AИP100S	24	415	275	215	160	205	112	180	63	28	60	8	31	7	100	12
AИP100L	2,4,6,8	420	275	215	160	205	140	185	63	28	60	8	31	7	100	12
AИP112MA	2,4,6,8	400	300	240	190	240	140	223	70	32	80	10	35	8	112	12
AИP112MB	68	490	302	240	190	240	140	223	70	32	80	10	35	8	112	12
AИP132S	4,6,8	615	355	283	216	275	140	223	89	38	80	10	41	8	132	12
AИP132M	2,4,6,8	615	355	283	216	275	178	223	89	38	80	10	41	8	132	12
AИP160S	2	670	435	330	254	320	178	314	108	42	110	12	45	8	160	15
AИP160S	4,6,8	670	435	330	254	320	178	314	108	48	110	14	51.5	9	160	15
AИP160	2	670	435	330	254	320	210	314	108	42	110	12	45	8	160	15
AИP160	4,6,8	670	435	330	254	320	210	314	108	48	110	14	51.5	6	160	15
AИP180S	2	700	455	380	279	355	203	343	121	48	110	14	51.5	6	180	15
AИP180S	4	700	455	380	279	355	203	343	121	55	110	16	59	10	180	15
AИP180M	2	769	455	380	279	355	241	355	121	48	110	14	51.5	9	180	15
AИP180M	4,6,8	769	455	380	279	355	241	355	121	55	110	16	59	10	180	15
AИP200M	2	852	505	420	318	395	267	377	133	55	110	16	59	10	200	19
AИP200M	4,6,8	852	505	420	318	395	267	377	133	60	110	18	64	11	200	19
AИP200L	2	887	505	420	318	395	305	377	133	55	110	16	59	10	200	19
AИP200L	4,6,8	887	505	420	318	395	305	377	133	60	140	18	64	11	200	19
AИP225M	2	855	560	470	356	435	311	394	149	55	110	16	59	10	225	19
AИP225M	4,6,8	855	560	470	356	435	311	394	149	65	140	18	69	11	225	19
AИP250S	2	981	635	510	406	490	311	445	168	65	140	18	69	11	250	24
AИP250S	4,6,8,10	981	635	510	406	490	311	445	168	75	140	20	79.5	12	250	24
AИP250M	2	1031	615	510	406	490	349	459	168	65	140	18	69	11	250	24
AИP250M	4,6,8,10	1031	615	510	406	490	349	459	168	75	140	20	79.5	12	250	24
AИP280S	2	1146	698	580	457	550	368	540	190	70	140	20	74.5	12	280	24
AИP280S	4,6,8,10	1146	698	580	457	550	368	540	190	80	170	22	85	14	280	24
AИP280M	2	1197	680	580	457	550	419	540	190	70	140	20	74.5	12	280	24
AИP280M	4,6,8,10	1197	680	580	457	550	419	540	190	80	170	22	85	14	280	24
AИP315S	2	1318	870	650	508	640	406	680	216	75	140	20	79.5	12	315	28
AИP315S	4,6,8,10	1318	870	650	508	640	406	680	216	90	170	25	95	14	315	28
AИP315M	2	1325	870	650	508	640	457	680	216	75	140	20	79.5	12	315	28
AИP315M	4,6,8,10,12	1325	870	650	508	640	457	680	216	90	170	25	95	14	315	28
AИP355S	2	1556	1010	735	610	735	500	775	254	85	170	22	90	14	355	28
AИP355S	4,6,8,10,12	1570	1010	735	610	735	500	775	254	100	210	28	106	16	355	28
AИP355M	2	1556	1010	735	610	735	560	775	254	85	170	22	90	14	355	28
AИP355M	4,6,8,10,12	1570	1010	735	610	735	560	775	254	100	210	28	106	16	355	28

Advantages of AИP GOST Three-Phase Induction Motor

Efficient and energy-saving;
Good conductivity;
Safe operation and long service life;
Low noise, low vibration;
Strong adaptability and wide application;
Low temperature bearings, suitable for cold environments;
Excellent insulation performance and durability.
