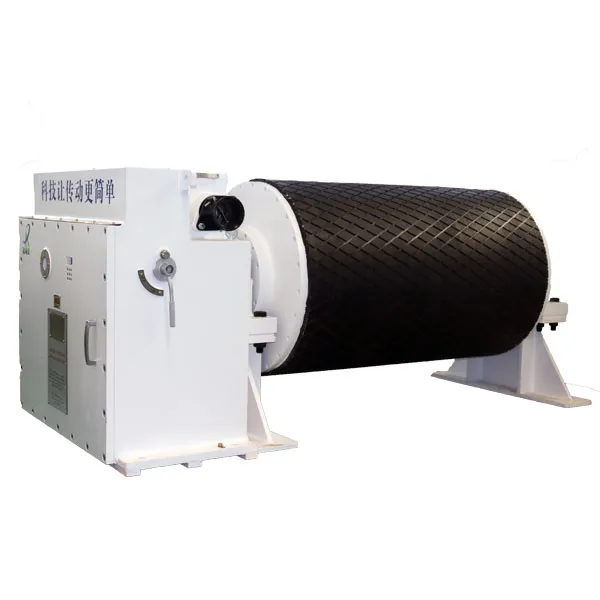

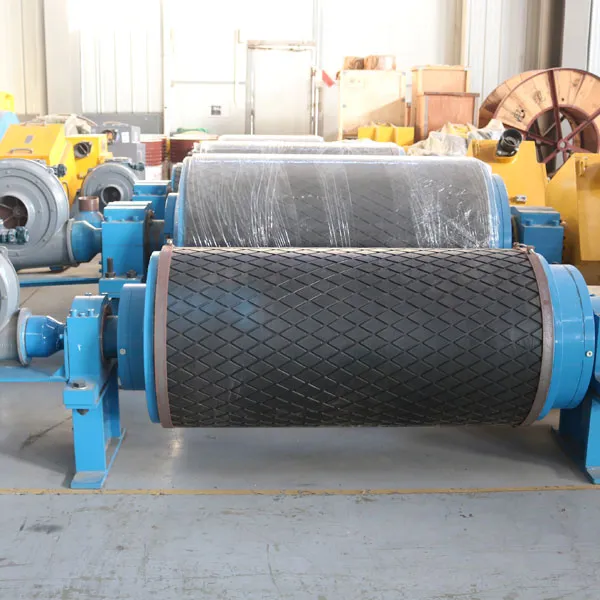

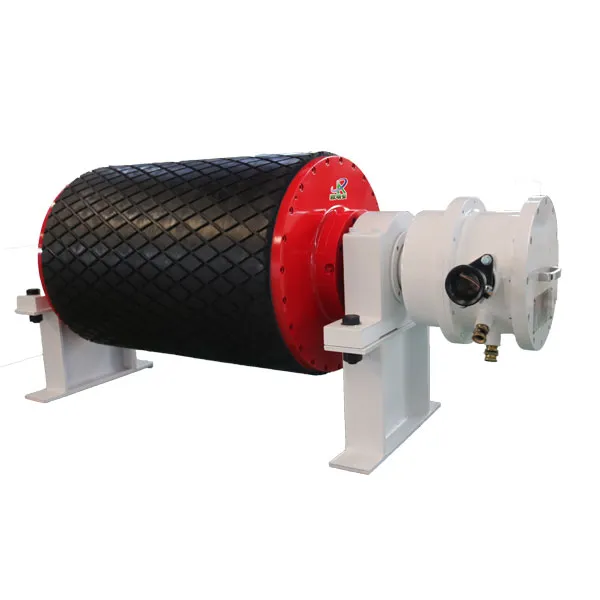

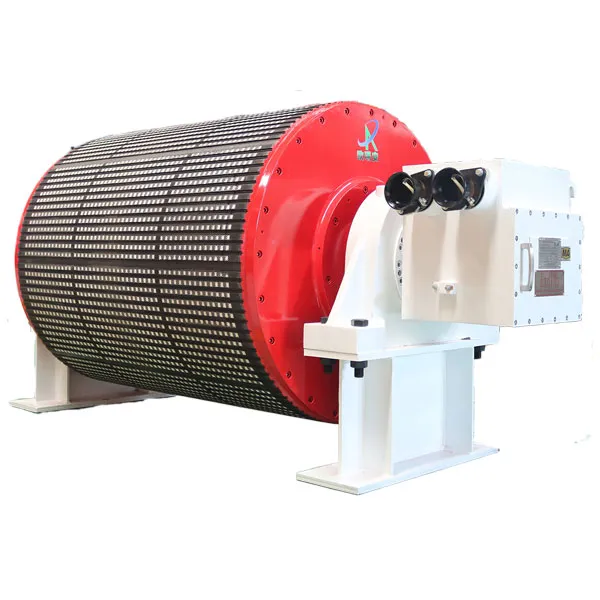

Name: Permanent Magnetic Drum
Brand: Shandong Ouruian Electric Co., Ltd.
Availability: InStock

Features of Permanent Magnetic Drum

Efficient and energy-saving: The permanent magnetic drum replaces the motor+reducer+high (low) speed coupling drive mode, eliminating all intermediate transmission links to improve system efficiency by more than 20%.
High starting torque and strong overload capacity: The permanent magnetic drum uses variable frequency vector control to achieve a starting torque of 2.2 times the rated torque and an overload torque of 2 times the rated torque.
Zero land occupation and simple construction: Variable frequency vector control enables the permanent magnetic drum to achieve a starting torque of 2.2 times the rated torque and an overload torque of 2 times the rated torque.
Rich series: Our permanent magnetic drum series features a standardized design, with drum diameters covering 630mm-1400mm, belt widths from 650mm-2200mm, and power from 30kW-630kW.
Low maintenance: With the permanent magnetic drum, only one bearing lubrication is required every 3000 hours of operation, reducing maintenance needs by over 90%.

Specifications of Permanent Magnetic Drum

Selection Table of STYB Series PMSEP

NO.	Type	Diameter(mm)	Rated power(kW)	Belt width(mm)	Belt speed(m/s)	Rated voltage(V)
1	STYB30-(1.6～5.0)-630x(650～2000) (660/1140)	630	30	650~2000	1.6-5.0	380/660/1140
2	STYB37-(1.6～5.0)-630x(650～2000) (660/1140	630	37	650~2000	1.6-5.0	380/660/1140
3	STYB40-(1.6～5.0)-630x(650～2000) (660/1140)	630	40	650~2000	1.6-5.0	380/660/1140
4	STYB45-(1.6～5.0)-630x(650～2000) (660/1140)	630	45	650~2000	1.6-5.0	380/660/1140
5	STYB55-(1.6～5.0)-630x(650～2000) (660/1140)	630	55	650~2000	1.6-5.0	660/1140
6	STYB75-(1.6～5.0)-630x(650～2000) (660/1140)	630	75	650~2000	1.6-5.0	660/1140
7	STYB90-(2.0～5.0)-630x(650～2000) (660/1140)	630	90	650~2000	2.0-5.0	660/1140
8	STYB110-(2.0~5.0)-630x(650~2000) (660/1140)	630	110	650~2000	2.0-5.0	660/1140
9	STYB132-(4.0~5.0)-630x(800~1600) (660/1140)	630	132	800~1600	4.0-5.0	660/1140
10	STYB160-(4.5～5.0)-630x(1000~1400) (660/1140)	630	160	1000~1400	4.5-5.0	660/1140
11	STYB185-5.0-630x(1000～1200) (660/1140)	630	185	1000~1200	5.0	660/1140
12	STYB30-(1.6～5.0)-800x(650～2000) (660/1140)	800	30	650~2000	1.6-5.0	660/1140
13	STYB37-(1.6～5.0)-800x(650~2000) (660/1140)	800	37	650～2000	1.6-5.0	660/1140
14	STYB40-(1.6～5.0)-800x(650~2000) (660/1140)	800	40	650~2000	1.6-5.0	660/1140
15	STYB45-(1.6~5.0)-800x(650~2000) (660/1140)	800	45	650~2000	1.6-5.0	660/1140
16	STYB55-(1.6～5.0)-800x(650～2000) (660/1140)	800	55	650~2000	1.6-5.0	660/1140
17	STYB75-(1.6～5.0)-800x(650~2000) (660/1140)	800	75	650~2000	1.6-5.0	660/1140
18	STYB90-(2.0~5.0)-800x(650~200) (660/1140)	800	90	650~2000	2.0-5.0	660/1140
19	STYB110-(2.0~5.0)-800x(650~2000) (660/1140)	800	110	650~2000	2.0-5.0	660/1140
20	STYB132-(2.0~5.0)-800x(650～2000) (660/1140)	800	132	650～2000	2.0-5.0	660/1140
21	STYB160-(2.5～5.0)-800x(650~2000) (660/1140)	800	160	650~2000	2.5-5.0	660/1140
22	STYB185-(2.5～5.0)-800x(650～2000) (660/1140)	800	185	650~2000	2.5-5.0	660/1140
23	STYB200-(3.15～5.0)-800x(650~2000) (660/1140)	800	200	650~2000	3.15-5.0	660/1140
24	STYB220-(4.0～5.0)-800x(1000~2000) (660/1140)	800	220	1000~2000	4.0-5.0	660/1140
25	STYB250-(4.0~5.0)-800x(1000~1800) (660/1140)	800	250	1000~1800	4.0-5.0	660/1140
26	STYB40-(1.6～6.3)-1000x(800~2000) (660/1140)	1000	40	800~2000	1.6-6.3	660/1140
27	STYB45-(1.6～6.3)-1000x(800~2000) (660/1140)	1000	45	800~2000	1.6-6.3	660/1140
28	STYB55-(1.6～6.3)-1000x(800～2000)( 660/1140)	1000	55	800~2000	1.6-6.3	660/1140
29	STYB75-(1.6～6.3)-1000x(800~2000) (660/1140)	1000	75	800~2000	1.6-6.3	660/1140
30	STYB90-(1.6～6.3)-1000x(800~2000) (660/1140)	1000	90	800~2000	1.6-6.3	660/1140
31	STYB110-(1.6～6.3)-1000x(800～2000) (660/1140)	1000	110	800~2000	1.6-6.3	660/1140
32	STYB132-(1.6～5.0)-1000x(800～2000) (660/1140)	1000	132	800～2000	1.6-5.0	660/1140
33	STYB160-(1.6～5.0)-1000x(800~2000) (660/1140)	1000	160	800~2000	1.6-5.0	660/1140
34	STYB185-(2.0～5.0)-1000x(800~2000) (660/1140)	1000	185	800~2000	2.0-5.0	660/1140
35	STYB200-(2.0～5.0)-1000x(800～2000) (660/1140)	1000	200	800~2000	2.0-5.0	660/1140
36	STYB220-(2.5～5.0)-1000x(800~2000) (660/1140)	1000	220	800~2000	2.5-5.0	660/1140
37	STYB250-(2.5～5.0)-1000x(800～2000) (660/1140)	1000	250	800~2000	2.5-5.0	660/1140
38	STYB280-(3.15~5.0)-1000x(800~2000) (660/1140)	1000	280	800~2000	3.15-5.0	660/1140
39	STYB315-(3.15~5.0)-1000x(800~2000) (660/1140)	1000	315	800～2000	3.15-5.0	660/1140
40	STYB132-(2.0～5.0)-1250x(800～2000) (660/1140)	1250	132	800～2000	2.0-5.0	660/1140
41	STYB160-(2.0～5.0)-1250x(800～2000) (660/1140)	1250	160	800～2000	2.0-5.0	660/1140
42	STYB185-(2.0～5.0)1250x(800～2000) (660/1140)	1250	185	800～2000	2.0-5.0	660/1140
43	STYB200-(2.0~5.0)-1250x(800～2000) (660/1140)	1250	200	800～2000	2.0-5.0	660/1140
44	STYB220-(2.0~5.0)-1250x(800～2000) (660/1140)	1250	220	800～2000	2.0-5.0	660/1140
45	STYB250-(2.0~5.0)-1250x(800～2000) (660/1140)	1250	250	800～2000	2.0-5.0	660/1140
46	STYB280-(2.0～5.0)-1250x(800～2000) (660/1140)	1250	280	800～2000	2.0-5.0	660/1140
47	STYB315-(2.0~5.0)-1250x(800～2000) (660/1140)	1250	315	800～2000	2.0-5.0	660/1140
48	STYB132-(2.5～5.0)-1400x(800～2000) (660/1140)	1400	132	800～2000	2.5-5.0	660/1140
49	STYB160-(2.5～5.0)-1400x(800~2000) (660/1140)	1400	160	800～2000	2.5-5.0	660/1140
50	STYB185-(2.5～5.0)-1400x(800～2000) (660/1140)	1400	185	800～2000	2.5-5.0	660/1140
51	STYB200-(2.5～5.0)-1400x(800～2000) (660/1140)	1400	200	800~2000	2.5-5.0	660/1140
52	STYB220-(2.5~5.0)-1400x(800～2000) (660/1140)	1400	220	800～2000	2.5-5.0	660/1140
53	STYB250-(2.5～5.0)-1400x(800～2000) (660/1140)	1400	250	800～2000	2.5-5.0	660/1140
54	STYB280-(2.5~5.0)-1400x(800～2000) (660/1140)	1400	280	800～2000	2.5-5.0	660/1140
55	STYB315-(2.5~5.0)-1400x(800~2000) (660/1140)	1400	315	800～2000	2.5-5.0	660/1140

Selection Table of FTYB Series PMSEP

NO.	Type	Diameter(mm)	Rated power(kW)	Belt width(mm)	Belt speed(m/s)	Rated voltage(V)
1	FTYB22-(1.25～5.0)-630x(650～2000) (660/1140)	630	22	650～2000	1.25～5.0	660/1140
2	FTYB30-(1.25～5.0)-630x(650~2000) (660/1140)	630	30	650～2000	1.25～5.0	660/1140
3	FTYB37-(1.6~5.0)-630x(650~2000) (660/1140)	630	37	650～2000	1.6～5.0	660/1140
4	FTYB40-(1.6～5.0)-630x(650～2000) (660/1140)	630	40	650～2000	1.6～5.0	660/1140
5	FTYB45-(2.0～5.0)-630x(650～2000) (660/1140)	630	45	650～2000	2.0～5.0	660/1140
6	FTYB55-(2.0~5.0)-630x(650～2000) (660/1140)	630	55	650～2000	2.0～5.0	660/1140
7	FTYB75-(2.0~5.0)-630x(650～2000) (660/1140)	630	75	650～2000	2.0～5.0	660/1140
8	FTYB90-(2.0~5.0)-630x(650～2000) (660/1140)	630	90	650～2000	2.0～5.0	660/1140
9	FTYB110-(2.5~5.0)-630x(650～2000) (660/1140)	630	110	650～2000	2.5～5.0	660/1140
10	FTYB30-(1.6～5.0)-800x(650～2000) (660/1140)	800	30	650～2000	1.6～5.0	660/1140
11	FTYB37-(1.6～5.0)-800x(650~200) (660/1140)	800	37	650～2000	1.6～5.0	660/1140
12	FTYB40-(1.6～5.0)-800x(650～2000) (660/1140)	800	40	650～2000	1.6～5.0	660/1140
13	FTYB45-(1.6～5.0)-800x(650～2000) (660/1140)	800	45	650～2000	1.6～5.0	660/1140
14	FTYB55-(1.6～5.0)-800x(650～2000) (660/1140)	800	55	650～2000	1.6~5.0	660/1140
15	FTYB75-(1.6～5.0)-800x(650～2000) (660/1140)	800	75	650～2000	1.6~5.0	660/1140
16	FTYB90-(2.0～5.0)-800x(650～2000) (660/1140)	800	90	650～2000	2.0～5.0	660/1140
17	FTYB110-(2.0～5.0)-800x(650～2000) (660/1140)	800	110	650～2000	2.0～5.0	660/1140

External Dimension Table of STYB Series PMSEP

ORA-BG	Type	Pulley diameter (mm)	Dimension
ORA-BG	Type	Pulley diameter (mm)	B	A	L	M	N	Q	P	H	h	ds
6563	STYB (22, 30, 37, 40) - (1.25-5.0)-630×650	630	650	1150	800	110		480	560	170	50	M30
8063	STYB (30, 40, 55) - (1.6-2.5)-630×800	630	800	1320	950	110		480	560	170	50	M30
10063	STYB (30, 40, 55, 75) - (1.6-2.5)-630×1000	630	1000	1520	1150	110		480	560	170	50	M30
12063	STYB (30, 40, 55, 75, 90) - (1.6-2.5)-630×1200	630	1200	1750	1400	110		480	560	170	50	M30
14063	STYB (30, 40, 55, 75, 90) - (1.6-2.5)-630×1400	630	1200	1950	1400	110		480	560	170	50	M30
16063	STYB (30, 40, 55, 75, 90) - (1.6-2.5)-630x1600	630	1600	2150	1800	110		480	560	170	50	M30
18063	STYB (30, 40, 55, 75, 90) - (1.6-2.5)-630×1800	630	1600	2350	1800	110		480	560	170	50	M30
20063	STYB (30, 40, 55, 75, 90) - (1.6-2.5)-630×2000	630	1600	2550	1800	110		480	560	170	50	M30
6580.2	STYB (30, 37, 40, 45, 55, 75) - (1.6~5.0)-800×650	800	650	1150	800	110		480	560	170	50	M30
8080.2	STYB (30, 37, 40, 45, 55, 75, 90, 110, 132) - (1.6~5.0)-800×800	800	800	1320	950	110		480	560	170	50	M30
10080.2	STYB (30, 37, 40, 45, 55, 75, 90, 110, 132) - (1.6~5.0)-800×1000	800	1000	1520	1150	110		480	560	170	50	M30
10080.3	STYB (160, 180) - (2.0~5.0)-800×1000	800	1000	1600	1150	120		480	560	170	50	M30
12080.2	STYB (30, 37, 40, 45, 55, 75, 90, 110, 132) - (1.6~5.0)-800×1200	800	1200	1750	1400	120		480	560	170	50	M30
12080.3	STYB (160, 180) - (2.0~5.0)-800×1200	800	1200	1850	1400	120		480	560	170	50	M30
12080.4	STYB (200, 220, 250) - (2.0~5.0)-800×1200	800	1200	1850	1400	200	120	570	700	220	50	M30
14080.2	STYB (30, 37, 40, 45, 55, 75, 90, 110, 132) - (1.6~5.0)-800×1400	800	1400	1950	1600	120		480	560	170	50	M30
14080.3	STYB (160, 180) - (2.0~5.0)-800×1400	800	1400	2050	1600	120		480	560	170	50	M30
14080.4	STYB (200, 220, 250) - (2.0~5.0)-800×1400	800	1400	2050	1600	200	120	570	700	220	70	M30
16080.2	STYB (30, 37, 40, 45, 55, 75, 90, 110, 132) - (1.6~5.0)-800×1600	800	1600	2150	1800	120		480	560	170	50	M30
16080.3	STYB (160, 180) - (2.0~5.0)-800×1600	800	1600	2250	1800	120		480	560	170	50	M30
16080.4	STYB (200, 220, 250) - (2.0~5.0)-800×1600	800	1600	2250	1800	200	120	570	700	220	70	M30
18080.2	STYB (30, 37, 40, 45, 55, 75, 90, 110, 132) - (1.6~5.0)-800×1800	800	1800	2350	2000	120		480	560	170	50	M30
18080.3	STYB (160, 180) - (2.0～5.0)-800×1800	800	1800	2450	2000	120		480	560	170	50	M30
18080.4	STYB (200, 220, 250) - (2.0~5.0)-800×1800	800	1800	2450	2000	200	120	570	700	220	70	M30
20080.2	STYB (30, 37, 40, 45, 55, 75, 90, 110, 132) - (1.6～5.0)-800×2000	800	2000	2350	2200	120		480	560	170	50	M30
20080.3	STYB (160, 180) - (2.0~5.0)-800×2000	800	2000	2450	2200	120		480	560	170	50	M30
20080.4	STYB (200, 220, 250) - (2.0～5.0)-800×2000	800	2000	2450	2200	200	120	570	700	220	70	M30
80100.3	STYB (40, 45, 55, 75, 90, 110, 132) - (1.6～5.0)-1000×800	1000	800	1400	950	200	120	570	700	220	70	M30
100100.3	STYB (40, 45, 55, 75, 90, 110, 132, 160, 185, 200) - (2.5-4)-1000×1000	1000	1000	1600	1150	200	120	570	700	220	70	M30
120100.3	STYB (40, 45, 55, 75, 90, 110, 132, 160, 185, 200) - (2.5-4)-1000×1200	1000	1200	1850	1400	200	120	570	700	220	70	M30
120100.5	STYB (220, 250, 280, 315) - (2.5-4) - 1000×1200	1000	1200	1900	1400	240	140	640	780	240	70	M30
140100.3	STYB (40, 45, 55, 75, 90, 110, 132, 160, 185, 200) - (2.5-4)-1000×1400	1000	1400	2050	1600	200	120	570	700	220	70	M30
140100.5	STYB (220, 250, 280, 315) - (2.5-4)-1000×1400	1000	1400	2100	1600	240	140	640	780	240	70	M30
140100.6	STYB (280, 315) - (2.5-4)-1000×1400	1000	1400	2100	1600	240	140	800	950	310	70	M36
160100.3	STYB (40, 45, 55, 75, 90, 110, 132, 160, 185, 200) - (2.5-4)-1000×1600	1000	1600	2250	1800	200	120	570	700	220	70	M30
160100.5	STYB (220, 250, 280, 315) - (2.5-4)-1000×1600	1000	1600	2300	1800	240	140	640	780	240	70	M30
160100.6	STYB (280, 315) - (2.5-4)-1000×1600	1000	1600	2300	1800	240	140	800	950	310	70	M36
180100.3	STYB (40, 45, 55, 75, 90, 110, 132, 160, 185, 200) - (2.5-4)-1000×1800	1000	1800	2450	2000	200	120	570	700	220	70	M30
180100.5	STYB (220, 250, 280, 315) - (2.5-4)-1000×1800	1000	1800	2500	2000	240	140	640	780	240	70	M30
180100.6	STYB (280, 315) - (2.5-4)-1000×1800	1000	1800	2500	2000	240	140	800	950	310	70	M36
200100.3	STYB (40, 45, 55, 75, 90, 110, 132, 160, 185, 200) - (2.5-4)-1000×2000	1000	2000	2650	2200	200	120	570	700	220	70	M30
200100.5	STYB (220, 250, 280, 315) - (2.5-4)-1000×2000	1000	2000	2700	2200	240	140	640	780	240	70	M30
200100.6	STYB (280, 315) - (2.5-4)-1000×2000	1000	2000	2700	2200	240	140	800	950	310	70	M36
80125.6	STYB (132, 160, 185, 200, 220, 250, 280, 315) - (2.0-5.0)-1250×800	1250	800	1500	1000	240	140	800	950	310	70	M36
100125.6	STYB (132, 160, 185, 200, 220, 250, 280, 315) - (2.0-5.0)-1250×1000	1250	1000	1700	1200	240	140	800	950	310	70	M36
120125.6	STYB (132, 160, 185, 200, 220, 250, 280, 315) - (2.0-5.0)-1250×1200	1250	1200	1900	1400	240	140	800	950	310	70	M36
120125.7	STYB (132, 160, 185, 200, 220, 250, 280, 315) - (2.0-5.0)-1250×1200	1250	1200	1900	1400	290	160	900	1080	360	70	M36
140125.6	STYB (132, 160, 185, 200, 220, 250, 280, 315) - (2.0-5.0)-1250×1400	1250	1400	2100	1600	240	140	800	950	310	70	M36
140125.7	STYB (132, 160, 185, 200, 220, 250, 280, 315) - (2.0-5.0)-1250×1400	1250	1400	2100	1600	290	160	900	1080	360	70	M36
160125.6	STYB (132, 160, 185, 200, 220, 250, 280, 315) - (2.0-5.0)-1250×1600	1250	1600	2300	1800	240	140	800	950	310	70	M36
160125.7	STYB (132, 160, 185, 200, 220, 250, 280, 315) - (2.0-5.0)-1250×1600	1250	1600	2300	1800	290	160	900	1080	360	70	M36
180125.6	STYB (132, 160, 185, 200, 220, 250, 280, 315) - (2.0-5.0)-1250×1800	1250	1800	2500	2000	240	140	800	950	310	70	M36
180125.7	STYB (132, 160, 185, 200, 220, 250, 280, 315) - (2.0-5.0)-1250×1800	1250	1800	2500	2000	290	160	900	1080	360	70	M36
200125.6	STYB (132, 160, 185, 200, 220, 250, 280, 315) - (2.0-5.0)-1250×2000	1250	2000	2700	2200	240	140	800	950	310	70	M36
200125.7	STYB (132, 160, 185, 200, 220, 250, 280, 315) - (2.0-5.0)-1250×2000	1250	2000	2700	2200	290	160	900	1080	360	70	M36
80140.6	STYB (132, 160, 185, 200, 220, 250, 280, 315) - (2.5-5.0)-1400×800	1400	800	1500	1000	240	140	800	950	310	70	M36
100140.6	STYB (132, 160, 185, 200, 220, 250, 280, 315) - (2.5-5.0)-1400×1000	1400	1000	1700	1200	240	140	800	950	310	70	M36
120140.6	STYB (132, 160, 185, 200, 220, 250, 280, 315) - (2.5-5.0)-1400×1200	1400	1200	1900	1400	240	140	800	950	310	70	M36
120140.7	STYB (132, 160, 185, 200, 220, 250, 280, 315) - (2.5-5.0)-1400×1200	1400	1200	1900	1400	290	160	900	1080	360	70	M36
140140.6	STYB (132, 160, 185, 200, 220, 250, 280, 315) - (2.5-5.0)-1400×1400	1400	1400	2100	1600	240	140	800	950	310	70	M36
140140.7	STYB (132, 160, 185, 200, 220, 250, 280, 315) - (2.5-5.0)-1400×1400	1400	1400	2100	1600	290	160	900	1080	360	70	M36
160140.6	STYB (132, 160, 185, 200, 220, 250, 280, 315) - (2.5-5.0)-1400×1600	1400	1600	2300	1800	240	140	800	950	310	70	M36
160140.7	STYB (132, 160, 185, 200, 220, 250, 280, 315) - (2.5-5.0)-1400×1600	1400	1600	2300	1800	290	160	900	1080	360	70	M36
180140.6	STYB (132, 160, 185, 200, 220, 250, 280, 315) - (2.5-5.0)-1400×1800	1400	1800	2500	2000	240	140	800	950	310	70	M36
180140.7	STYB (132, 160, 185, 200, 220, 250, 280, 315) - (2.5-5.0)-1400×1800	1400	1800	2500	2000	290	160	900	1080	360	70	M36
200140.6	STYB (132, 160, 185, 200, 220, 250, 280, 315) - (2.5-5.0)-1400×2000	1400	2000	2700	2200	240	140	800	950	310	70	M36
200140.7	STYB (132, 160, 185, 200, 220, 250, 280, 315) - (2.5-5.0)-1400×2000	1400	2000	2700	2200	290	160	900	1080	360	70	M36

External Dimension Table of FTYB Series PMSEP

ORA-BG	Type	Pulley diameter (mm)	Dimension										Shaft diameter (mm)



			B	A	L	M	N	Q	P	H	h	ds
6563	FTYB (22, 30, 37, 40) - (1.25-5.0)-630×650	630	650	1350	800	110		480	560	170	50	M30	160
8063	FTYB (22, 30, 37, 40, 45, 55) - (1.25-5.0)-630×800	630	800	1500	950	110		480	560	170	50	M30	160
10063	FTYB (22, 30, 37, 40, 45, 55) - (1.25-5.0)-630×1000	630	1000	1700	1150	110		48C	560	170	50	M30	160
12063	FTYB (22, 30, 37, 40, 45, 55, 75, 90) - (1.25-5.0)-630×1200	630	1200	1900	1400	110		480	560	170	50	M30	160
14063	FTYB (22, 30, 37, 40, 45, 55, 75, 90, 110) - (1.25-5.0)-630×1400	630	1400	2100	1600	110		480	560	170	50	M30	160
16063	FTYB (22, 30, 37, 40, 45, 55, 75, 90, 110) - (1.25-5.0)-630×1600	630	1600	2300	1800	110		480	560	170	50	M30	160
18063	FTYB (22, 30, 37, 40, 45, 55, 75, 90, 110) - (1.25-5.0)-630×1800	630	1800	2500	2000	110		480	560	170	50	M30	160
20063	FTYB (22, 30, 37, 40, 45, 55, 75, 90, 110) - (1.25-5.0)-630×2000	630	2000	2700	2200	110		480	560	170	50	M30	160
6580	FTYB (30, 37, 40, 45, 55, 75, 90) - (2.0-5.0)-800×650	800	650	1450	850	200	105	520	640	200	60	M30	200
8080	FTYB (30, 37, 40, 45, 55, 75, 90) - (2.0-5.0)-800×800	800	800	1600	1000	200	105	520	640	200	60	M30	200
10080	FTYB (30, 37, 40, 45, 55, 75, 90, 110) - (2.0-5.0)-800×1000	800	1000	1800	1200	200	105	520	640	200	60	M30	200
12080	FTYB (30, 37, 40, 45, 55, 75, 90, 110) - (2.0-5.0)-800×1200	800	1200	2000	1400	200	105	520	640	200	60	M30	200
14080	FTYB (30, 37, 40, 45, 55, 75, 90, 110) - (2.0-5.0)-800×1400	800	1400	2200	1600	200	105	520	640	200	60	M30	200
16080	FTYB (30, 37, 40, 45, 55, 75, 90, 110) - (2.0-5.0)-800×1600	800	1600	2400	1800	200	105	520	640	200	60	M30	200
18080	FTYB (30, 37, 40, 45, 55, 75, 90, 110) - (2.0-5.0)-800×1800	800	1800	2600	2000	200	105	520	640	200	60	M30	200
20080	FTYB (30, 37, 40, 45, 55, 75, 90, 110) - (2.0-5.0)-800×2000	800	2000	2800	2200	200	105	520	640	200	60	M30	200

Application Environment of Permanent Magnetic Drum

The altitude does not exceed 2500m;
The ambient air temperature is -15℃~40℃;
The relative humidity of the air shall not exceed 95%(at+25℃);
Underground coal mines containing explosive mixtures of methane and coal dust;
In an environment without damaging insulation gases and vapors;
Maintain the cooling water temperature of the electric drum between 5 and 40℃;
The working pressure of cooling water is 0.3MPa~0.8MPa.

Get In Touch

Contact Ouruian for Permanent Magnet Synchronous Motor



Contact With Us:

E-mail: postmaster@ouruian.com


Have a Questions? Call Us:

+86-400-658-5088


Add:

No. 3777, Yitianmen Street, High-tech Zone, Tai'an City, Shandong Province, China

Leave a Message
