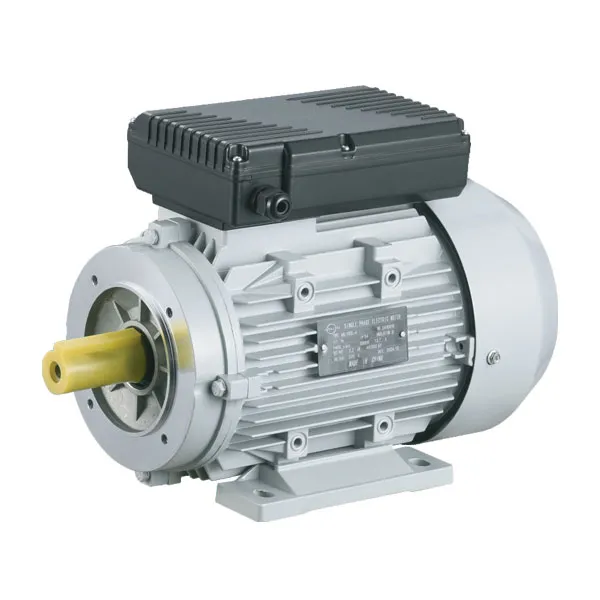

MY Single-Phase Asynchronous Motor

Single phase asynchronous motor refers to a low-power single-phase asynchronous motor powered by a single-phase AC power supply(AC220V), with a relatively small power design, generally not exceeding 2kW.

Single phase asynchronous motors are convenient to use, widely applicable, and have the advantages of simple structure, low cost, low noise, and minimal interference to wireless systems, as they only require single-phase AC power.

Therefore, it is commonly used in household appliances and small power machinery with low power, such as electric fans, washing machines, refrigerators, air conditioners, range hoods, medical equipment, and household water pumps.

Features of MY Single-Phase Asynchronous Motor

Strong adaptability of power supply;
Small size, easy to install;
Beautiful appearance;
Available for stainless steel shafts;
High performance and efficiency.

Technical Parameter of MY Single-Phase Asynchronous Motor

Rated Voltog: 220V Frequency: 50Hz

Type	Rated output		Current (A)	Power Factor (cosΦ)	Eff (%)	Rated Speed (r/min)	Is(A)	Ts/Tn	Tmax/Tn
Type	KW	Hp	Current (A)	Power Factor (cosΦ)	Eff (%)	Rated Speed (r/min)	Is(A)	Ts/Tn	Tmax/Tn
MY561-2	0.09	0.12	0.77	0.92	56	2730	2.5	0.5	1.7
MY561-2	0.09	0.12	0.77	0.92	56	2730	2.5	0.5	1.7
MY562-2	0.12	1/6	0.96	0.92	60	2730	3.5	0.5	1.7
MY631-2	0.18	1/4	1.35	0.92	65	2740	5	0.40	1.7
MY632-2	0.25	1/3	1.84	0.92	66	2740	7	0.40	1.7
MY711-2	0.37	1/2	2.65	0.92	67	2750	10	0.35	1.7
MY712-2	0.55	3/4	3.83	0.92	70	2760	15	0.35	1.7
MY801-2	0.75	1	5.08	0.92	72	2780	20	0.33	1.7
MY802-2	1.1	1.5	7.02	0.95	75	2790	30	0.33	1.7
MY90S-2	1.5	2	9.44	0.95	76	2800	45	0.3	1.7
MY90L-2	2.2	3	13.7	0.95	77	2800	65	0.3	1.7
MY90L-2	2.2	3	13.7	0.95	77	2800	65	0.3	1.7
MY561-4	0.06	0.08	0.57	0.90	50	1330	2	0.45	1.7
MY562-4	0.09	0.12	0.81	0.90	52	1340	2.5	0.45	1.7
MY562-4	0.09	0.12	0.81	0.90	52	1340	2.5	0.45	1.7
MY631-4	0.12	0.16	1.01	0.90	57	1350	3.5	0.4	1.7
MY631-4	0.12	0.16	1.01	0.90	57	1350	3.5	0.4	1.7
MY632-4	0.18	0.24	1.47	0.90	59	1360	5	0.4	1.7
MY711-4	0.25	0.33	1.93	0.92	61	1370	7	0.35	1.7
MY712-4	0.37	0.5	2.77	0.92	62	1370	10	0.35	1.7
MY801-4	0.55	0.75	4.00	0.92	64	1380	15	0.35	1.7
MY802-4	0.75	1	5.29	0.92	68	1380	20	0.32	1.7
MY90S-4	1.1	1.5	7.21	0.95	71	1390	30	0.32	1.7
MY90L-4	1.5	2	9.57	0.95	73	1400	45	0.3	1.7

Advantages of MY Single-Phase Asynchronous Motor

Flexible usage scenarios;
Simple structure and low cost;
Good startup performance;
Stable speed and good speed regulation performance;
Low noise and low vibration;
Strong adaptability and wide application;
Easy maintenance and long service life.
