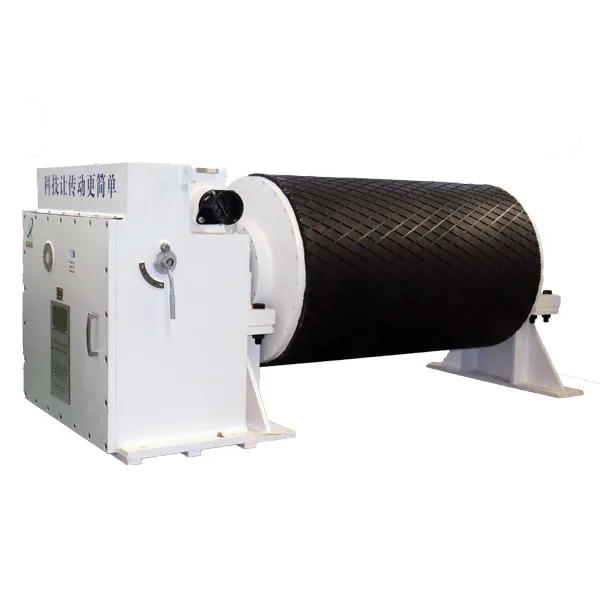

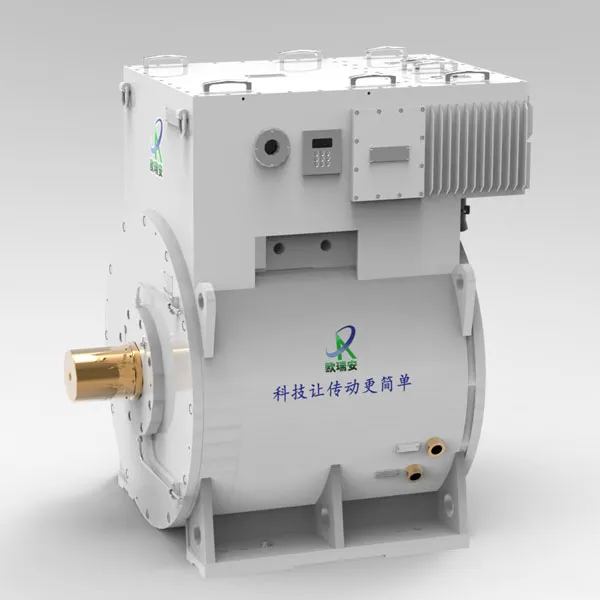

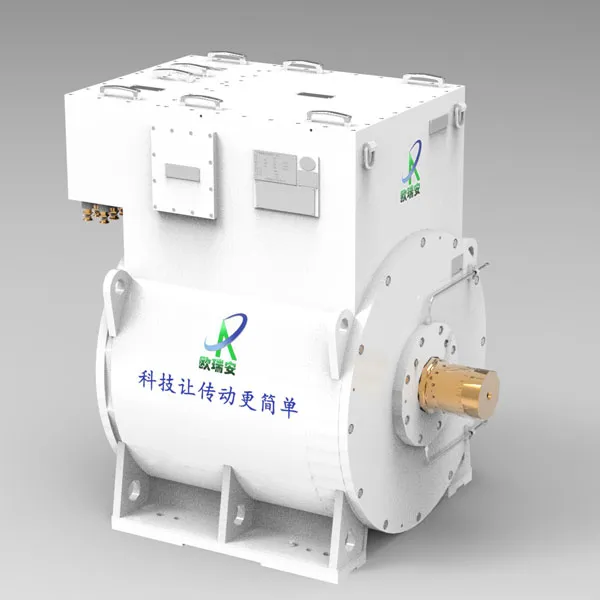

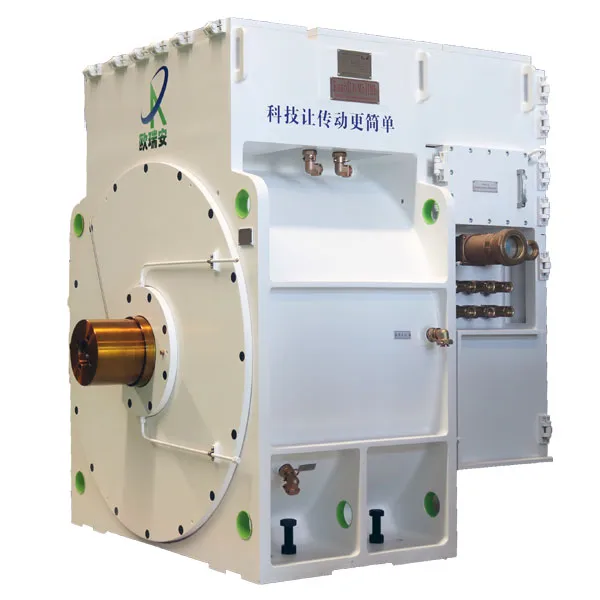

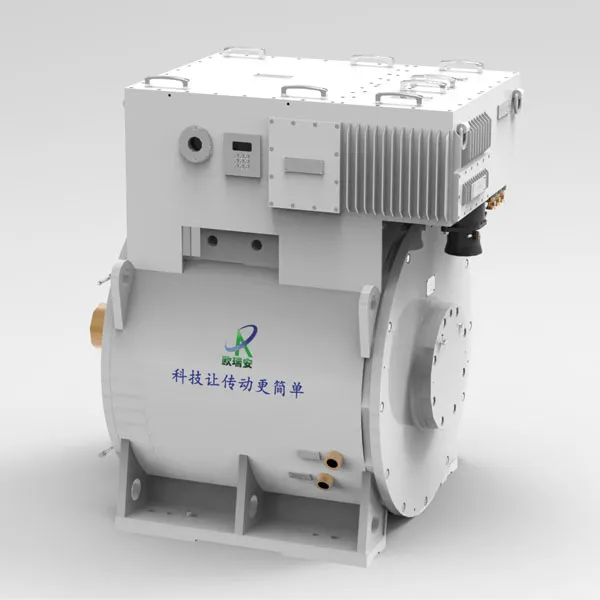

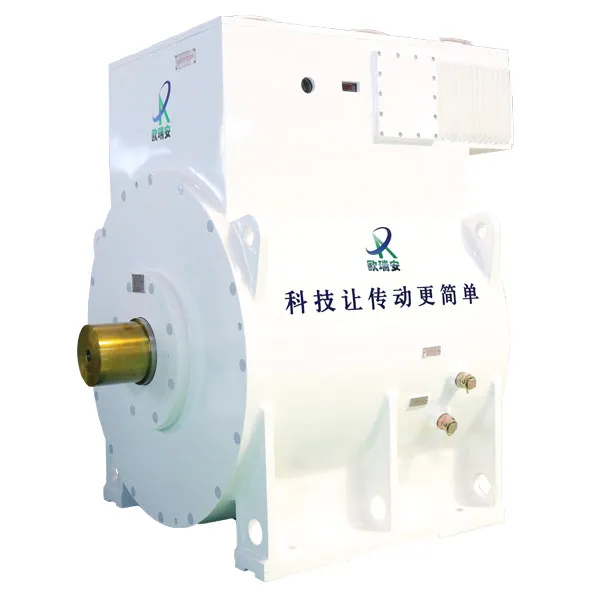

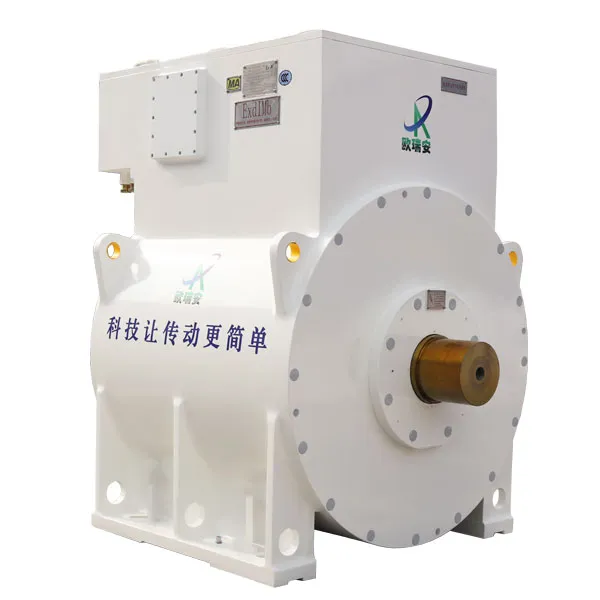

Integrated VFD

Precision-controlled integrated VFD drives deliver seamless power conversion for PMSM motors, optimizing torque efficiency (±0.5% speed accuracy) and cutting energy waste by up to 30%. Our compact all-in-one solutions feature built-in PLC logic, regenerative braking, and Modbus/CANopen protocols.

Features of PMSM with Integrated VFD

Intelligent, efficient, green and energy-saving, with high starting torque and strong overload capacity.
High system integration: innovatively integrating permanent magnet motors and frequency converters into one, simplifying drive configuration design, and making drive layout more flexible; Adopting advanced circuit topology design for higher power density.
Zero frequency conversion output distance: The system integration is not affected by the output distance of the frequency converter, completely eliminating the impact of long-distance power supply voltage spikes on the insulation life of the motor.
Low cable usage requirements and minimal line interference: The all-in-one power supply does not require shielding cables, and there is no need to consider radiation interference along the cable path, resulting in lower cable and laying costs.
Small footprint, simple construction: eliminates the need for frequency converter layout space, output side reactance filter, and cable laying, with short construction time and low cost.

Specifications of PMSM with Integrated VFD

Selection Table of TYJVFT Series

NO.	Type	Frame size	Rated power (KW)	Rated rotational speed(r/min)	Rated torque (Nm)	Rated current (A)	Pole


1	TYJVFT-560L-40 (90/1140)	560L	90	90	9550	60	40
2	TYJVFT-560L-40 (110/1140)	560L	110	90	11672	73	40
3	TYJVFT-560L-40 (160/1140)	560L	160	90	16978	104	40
4	TYJVFT-630L-40 (200/1140)	6301	200	90	21222	128	40
5	TYJVFT-630L-40 (250/1140)	630L	250	90	26528	160	40
6	TYJVFT-630L-40 (315/1140)	630L	315	90	33425	195	40
7	TYJVFT-800L-60 (400/1140)	800S	400	90	42444	250	60
8	TYJVFT-800L-60 (450/1140)	800S	450	90	47755	280	60
9	TYJVFT-800L-60 (500/1140)	800L	500	90	53056	310	60
10	TYJVFT-1000L-60 (630/1140)	1000s	630	90	66850	395	60
11	TYJVFT-1000L-60 (710/1140)	1000S	710	90	75339	450	60
12	TYJVFT-1000L-60 (800/1140)	1000L	800	90	84889	500	60
13	TYJVFT-1000L-60 (900/1140)	1000L	900	90	95500	560	60
14	TYJVFT-1000L-60 (1000/1140)	1000L1	1000	90	106111	620	60

External Dimension Table of TYJVFT Series

NO.	Frame size	Installation Dimension(mm)								External Dimension(mm)			Reference weight(kg)	Recommended taper lock

		D	E	C	B	A	K	T	H	L	AB	HD
1	560L	150	200	195	540	840	32	50	560	1487	1040	1505	3761	Z12A 150X210
2													4053
3													4637
4	630L	200	200	253	685	1000	42	50	630	1532	1170	1675	5824	Z12A 200X260
5													6188
6													6856
7	800S	260	200	250	500	1220	50	50	800	1729	1510	1555	8123	Z12A 260X325
8													8700
9	800L	260	200	250	640	1220	50	50	800	1869	1510	1555	9696
10	1000S	280	250	335	460	1410	58	70	1000	1881	1720	1860	11510	Z12A 280X355
11													12206
12	1000L	280	250	335	600	1410	58	70	1000	2021	1720	1860	12990
13													13573
14	1000L1	280	250	335	800	1410	58	70	1000	2221	1720	1860	14968
