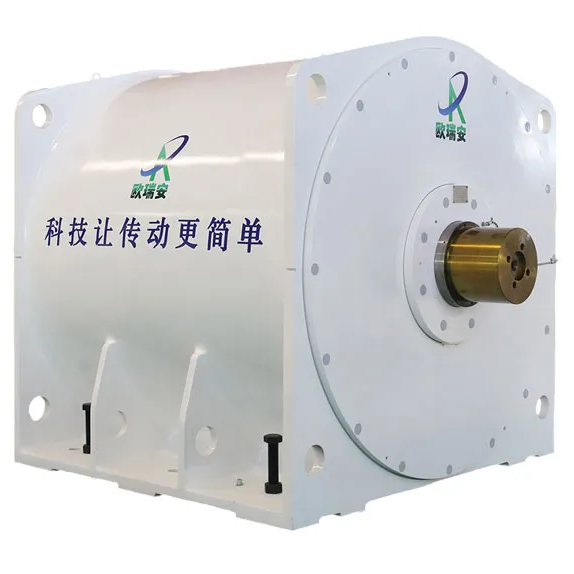

High-speed designs push motors to their limits: rotor stress, thermal saturation, efficiency losses, and control stability all become make-or-break factors. Choosing the right interior permanent magnet motor architecture — IPM versus SPM — affects torque density, field-weakening range, mechanical robustness, and total system cost. This guide explains the practical differences and how to select an interior permanent magnet synchronous motor solution that matches your speed range, duty cycle, and control strategy.
Interior Permanent Magnet Synchronous Motor Basics: What IPM and SPM Really Mean
Definitions That Matter for Engineering Decisions
| Architecture | Magnet Position | Rotor Saliency | Mechanical Design |
|---|
| IPM (Interior Permanent Magnet) | Embedded inside rotor iron | High saliency — Ld ≠ Lq | Magnets mechanically supported by rotor laminations |
| SPM (Surface Permanent Magnet) | Bonded or retained on rotor surface | Low saliency — Ld ≈ Lq | Magnets exposed — retention sleeve or adhesive required at speed |
The saliency difference is not just academic. In an interior permanent magnet synchronous motor, the difference between d-axis and q-axis inductance creates a reluctance torque component that adds to the magnetic torque — broadening the usable torque-speed curve. In an SPM, torque production is almost entirely magnetic, making the design simpler but the control range narrower.
Quick Decision Cues
Wide constant-power speed range required: IPM tends to win — stronger field-weakening capability
Cost-sensitive, moderate speed, simple control: SPM can be the better fit
Extreme RPM with high safety margin: IPM with robust rotor design is typically preferred
Torque ripple sensitivity: both can be designed for low ripple, but require different approaches
Interior Permanent Magnet Motor for High Speed: Mechanical Strength and Retention
The Centrifugal Force Problem
Centrifugal force scales with the square of rotational speed. A rotor operating at twice the RPM experiences four times the centrifugal load on every component. This scaling makes magnet retention the critical mechanical design challenge at high speed.
| Architecture | Centrifugal Load on Magnets | Retention Method | Speed Limit |
|---|
| IPM | Low — magnets inside iron; rotor structure carries the load | Iron bridges between magnet pockets retain magnets | Higher achievable RPM for same magnet material |
| SPM | High — full centrifugal load acts to pull magnets off the surface | Retention sleeve (carbon fiber, Inconel, or stainless) | Limited by sleeve design and adhesive system |
What to Validate for High-Speed IPM Designs
Overspeed margin: design speed versus maximum permissible RPM with defined safety factor
Iron bridge stress: the thin iron bridges between magnet pockets carry tensile stress — FEA analysis required at target speed
Rotor balancing: any mass asymmetry amplifies with speed — precision balancing required above defined RPM threshold
Vibration limits: natural frequencies of the rotor assembly must not coincide with operating speed range
When SPM Can Still Work at High Speed
SPM designs with carbon fiber retention sleeves can achieve high RPM but require careful sleeve design, winding tension control during manufacture, and thermal analysis of the sleeve-magnet interface across the operating temperature range. The tradeoff is typically higher rotor manufacturing cost and a more limited field-weakening range.
Interior Permanent Magnet Synchronous Motor Performance: Field Weakening and Efficiency
Field Weakening — Why It Matters
Field weakening is the control method that allows a motor to operate above its base speed at constant power. Above base speed, the back-EMF would exceed the inverter voltage limit if flux were not reduced. Both IPM and SPM support field weakening, but the physics differ.
| Performance Factor | IPM | SPM |
|---|
| Reluctance torque contribution | Significant — adds to magnetic torque | Negligible — nearly all torque is magnetic |
| Field-weakening range | Wide — reluctance torque contribution extends constant-power range | Narrower — flux reduction reduces torque more rapidly |
| Back-EMF at high speed | Better managed with d-axis current injection | More sensitive — requires careful calibration |
| Characteristic current | Often close to rated current — natural field weakening condition | Often not — requires more inverter current headroom |
Efficiency and Power Density
IPM designs typically achieve higher peak efficiency at high speed because:
Lower rotor surface losses from reduced air-gap harmonics compared to SPM with surface magnets in the flux path
Reluctance torque contribution allows lower magnet volume for similar peak torque
Wider field-weakening range means the motor operates closer to its efficiency peak across more of the duty cycle
SPM designs can achieve very high torque density at low speed and are simpler to control, which can translate to lower inverter cost in applications that do not require a wide speed range.
System-Level Impact
Inverter sizing: a wider field-weakening range in IPM reduces the peak inverter current required at high speed
DC bus voltage: back-EMF limits constrain the maximum no-load speed — IPM can often reach higher no-load speed for the same DC bus voltage
Thermal management: copper loss dominates at low speed; iron loss and windage dominate at high speed — cooling design must address both regimes
Interior Permanent Magnet Motor Losses at High RPM: Heat and Demagnetization Risk
Loss Sources That Scale with Speed
| Loss Mechanism | How It Scales with Speed | Design Control |
|---|
| Stator copper loss (I²R) | Does not increase with speed directly — depends on current level | Winding resistance minimization; current profile optimization |
| Stator iron loss | Increases with frequency (speed) — approximately f¹·² to f²·⁰ | Thin laminations; low-loss electrical steel grade |
| Rotor eddy current loss | Can be significant in IPM at high speed from stator harmonics | Magnet segmentation; rotor lamination design |
| Windage and friction | Scales with speed³ — dominant at very high RPM | Air gap sealing; bearing selection; enclosure design |
Magnet Demagnetization Risk
Permanent magnets can be partially or fully demagnetized if the combination of temperature and opposing magnetic field exceeds the magnet's knee-point on the demagnetization curve. In high-speed applications, this risk increases because:
Iron losses and copper losses heat the motor — particularly in repetitive duty cycles
High current during field weakening generates a strong d-axis demagnetizing field
Magnet temperature rises faster in IPM designs with embedded magnets that have limited direct cooling path
Design Controls for Demagnetization Protection
Grade selection: higher Hcj grades maintain coercivity at elevated temperature — essential for high-speed duty cycle applications
Magnet segmentation: divides the magnet into smaller pieces to reduce eddy current heating within the magnet
Temperature monitoring: thermistor or thermocouple near the magnets enables thermal protection limits in the drive
Cooling design: forced air, water jacket, or direct winding cooling depending on thermal requirements
Interior Permanent Magnet Synchronous Motor Selection Checklist
Application-Based Selection Guide
| Application Characteristic | Favors IPM | Favors SPM |
|---|
| Wide constant-power speed range (3:1 or more) | Yes — reluctance torque enables broader range | Less suitable without significant design effort |
| Very high RPM with safety margin | Yes — embedded magnets mechanically supported | Requires retention sleeve; cost increases |
| Simple control, moderate speed range | Possible but over-engineered for the application | Yes — simpler to control and lower cost |
| Maximum torque density at low speed | Possible | Yes — strong magnetic torque at base speed |
| Cost-sensitive volume production | Depends — IPM rotor more complex to manufacture | Yes — simpler rotor manufacturing |
What to Specify to Suppliers
| Parameter | Why It Matters |
|---|
| Target maximum RPM | Drives rotor mechanical design and retention strategy |
| Torque-speed curve | Defines both peak and continuous operating points |
| Duty cycle (continuous, intermittent, S-duty) | Determines thermal sizing — not just peak performance |
| Ambient temperature and cooling method | Sets the thermal baseline for magnet temperature analysis |
| DC bus voltage and inverter platform | Constrains back-EMF limits and field-weakening design point |
| Efficiency map requirements | Defines which operating points must be optimized |
| NVH limits | Torque ripple and acoustic noise constraints affect winding and pole design |
Conclusion
For high-speed applications, the IPM versus SPM decision is not about which is universally better — it is about matching motor physics to your operating window. An interior permanent magnet motor excels where mechanical robustness, wide field-weakening range, and high-speed efficiency are required. SPM designs remain effective for simpler, moderate-speed profiles where cost and control simplicity are priorities. Define your torque-speed curve, thermal limits, and inverter constraints early to select the right interior permanent magnet synchronous motor architecture before detailed design begins.
FAQ
Q1: What is the main difference between an interior permanent magnet motor and an SPM motor?
IPM motors have magnets embedded inside the rotor iron, while SPM motors mount magnets on the rotor surface. This changes the mechanical support for the magnets at high speed, the saliency ratio (which enables reluctance torque in IPM), and the field-weakening behavior — all of which become critical factors in high-speed application selection.
Q2: Which design is better for high-speed operation?
Many high-speed applications favor IPM because embedded magnets are mechanically supported by the rotor iron structure, and the reluctance torque contribution enables a wider constant-power speed range at reduced inverter current. SPM designs with retention sleeves can achieve high RPM but require more specialized manufacturing and have a more limited field-weakening range.
Q3: What does field weakening mean for an interior permanent magnet synchronous motor?
Field weakening is a control technique that reduces the effective air-gap flux by injecting d-axis current, allowing the motor to operate above its base speed without exceeding the inverter voltage limit. IPM motors can typically achieve a wider field-weakening range than SPM motors because their reluctance torque component partially compensates for the flux reduction.
Q4: What are the most common failure risks for PM motors in high-speed operation?
Rotor mechanical stress from centrifugal forces, magnet retention failure in SPM designs, magnet demagnetization from combined temperature and high d-axis current, stator iron loss and windage heating at high frequency, and rotor imbalance causing vibration. Each requires specific design analysis and validation before production.
Q5: What information should I provide to select the right motor architecture?
Required peak and continuous torque at each operating speed point, maximum RPM with overspeed requirement, duty cycle definition (continuous, intermittent, or S-duty class), ambient temperature and available cooling method, DC bus voltage and inverter rated current, target efficiency at key operating points, and any NVH or torque ripple limits that constrain the winding and pole design.
