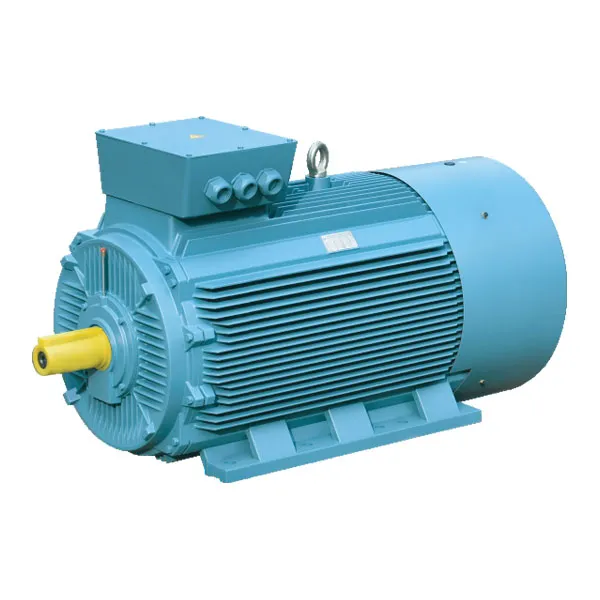

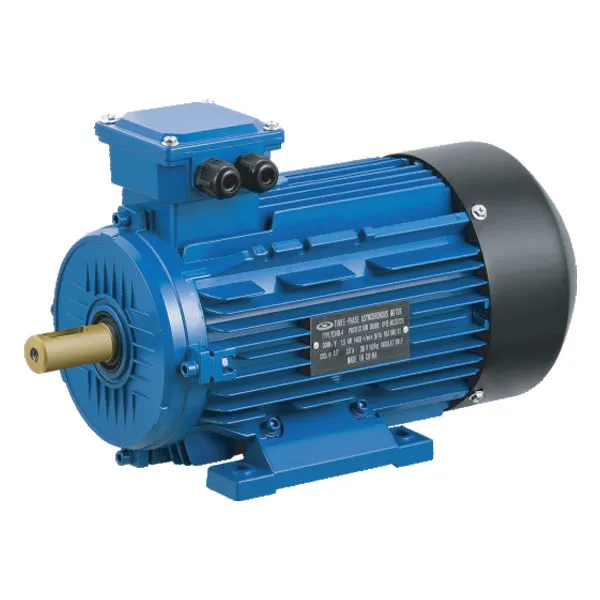

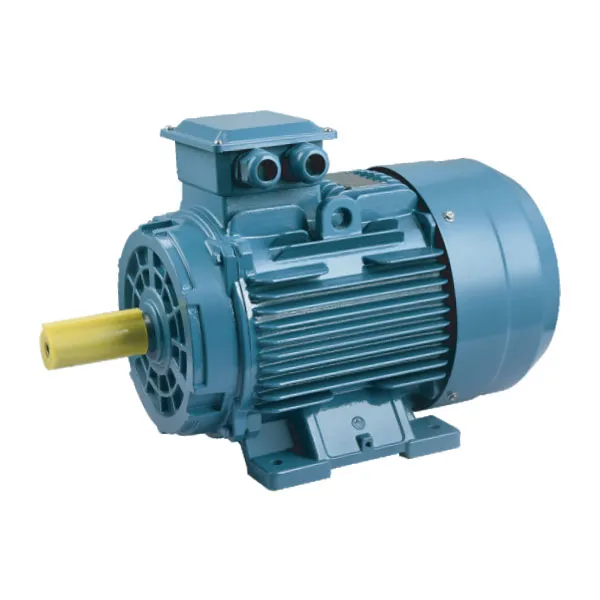

Name: IE3/IE4 Three-Phase Asynchronous Motor
Brand: Shandong Ouruian Electric Co., Ltd.
Availability: InStock

Features of IE3/IE4 Three-Phase Asynchronous Motor

Aluminum shell machine base, end cover, feet;
High strength sealing ring;
Available for shaft keys and protectors;
Beautiful appearance;
Suitable for high load work;
Stainless steel shaft available;
High performance and efficiency.

Technical Parameter of IE3/IE4 Three-Phase Asynchronous Motor

IE3 Technical Parameter SPEED 3000RPM 2-POLE 50Hz

Type	Rated output		Rated Speed (r/min)	Eff (100%)	Power Factor (cosΦ)	Current(A)			Rated Torque (Nm)	Ts/Tn	Tmax/Tn	Is/In
Type	KW	Hp	Rated Speed (r/min)	Eff (100%)	Power Factor (cosΦ)	380V 50Hz	400V 50Hz	415V 50Hz	Rated Torque (Nm)	Ts/Tn	Tmax/Tn	Is/In
IE3-63 1-2	0.18	0.25	2750	65.9	0.80	0.52	0.49	0.48	0.63	2.3	2.2	7.0
IE3-63 2-2	0.25	0.37	2750	69.7	0.81	0.67	0.64	0.62	0.87	2.3	2.2	7.0
IE3-71 1-2	0.37	0.5	2780	73.8	0.81	0.94	0.89	0.86	1.27	2.3	2.2	7.0
IE3-71 1-2	0.37	0.5	2780	73.8	0.81	0.94	0.89	0.86	1.27	2.3	2.2	7.0
IE3-71 2-2	0.55	0.75	2800	77.8	0.82	1.31	1.25	1.20	1.88	2.3	2.3	7.0
IE3-80 1-2	0.75	1	2840	80.7	0.82	1.70	1.62	1.56	2.52	2.3	2.3	7.0
IE3-80 2-2	1.1	1.5	2840	82.7	0.83	2.44	2.32	2.23	3.70	2.2	2.3	7.6
IE3-90S-2	1.5	2	2845	84.2	0.84	3.23	3.06	2.95	5.04	2.2	2.3	7.9
IE3-90L-2	2.2	3	2845	85.9	0.85	4.58	4.35	4.20	7.38	2.2	2.3	7.9
IE3-100L-2	3	4	2850	87.1	0.87	6.09	5.79	5.58	10.1	2.2	2.3	8.5
IE3-112M-2	4	5.5	2855	88.1	0.88	7.94	7.54	7.27	13.4	2.2	2.3	8.5
IE3-132S1-2	5.5	7.5	2860	89.2	0.88	10.7	10.1	9.8	18.4	2.0	2.3	8.5
IE3-132S2-2	7.5	10	2870	90.1	0.88	14.4	13.7	13.2	25.0	2.0	2.3	8.5
IE3-160M1-2	11	15	2880	91.2	0.89	20.6	19.6	18.9	36.5	2.0	2.3	8.5
IE3-160M2-2	15	20	2890	91.9	0.89	27.9	26.5	25.5	49.6	2.0	2.3	8.5
IE3-160L-2	18.5	25	2910	92.4	0.89	33.8	32.1	31.0	60.7	2.0	2.3	8.5
IE3-160L-2	18.5	25	2940	92.4	0.89	34.2	32.5	31.3	60.1	2.0	2.3	8.5
IE3-160L-2	18.5	25	2940	92.4	0.89	34.2	32.5	31.3	60.1	2.0	2.3	8.5
IE3-180M-2	22	30	2955	92.7	0.89	40.1	38.1	36.7	71.1	2.0	2.3	8.5
IE3-180M-2	22	30	2955	92.7	0.89	40.1	38.1	36.7	71.1	2.0	2.3	8.5
IE3-200L1-2	30	40	2960	93.3	0.89	55.0	52.2	50.3	96.8	2.0	2.3	8.5
IE3-200L1-2	30	40	2960	93.3	0.89	55.0	52.2	50.3	96.8	2.0	2.3	8.5
IE3-200L2-2	37	50	2960	93.7	0.89	66.0	62.7	60.4	119	2.0	2.3	8.5
IE3-225M-2	45	60	2965	94.0	0.90	82.8	78.6	75.8	145	2.0	2.3	8.0
IE3-225M-2	45	60	2965	94.0	0.90	82.8	78.6	75.8	145	2.0	2.3	8.0
IE3-250M-2	55	75	2970	94.3	0.90	99.7	94.7	91.3	177	2.0	2.3	8.0
IE3-280S-2	75	100	2975	94.7	0.90	134	127	123	241	1.8	2.3	7.5
IE3-280M-2	90	125	2975	95.0	0.90	162	154	148	289	1.8	2.3	7.5
IE3-315S-2	110	150	2978	95.2	0.90	195	186	179	353	1.8	2.3	7.5
IE3-315M-2	132	180	2978	95.4	0.90	234	222	214	423	1.8	2.3	7.5
IE3-315L1-2	160	200	2980	95.6	0.91	283	269	259	513	1.8	2.3	7.5
IE3-315L2-2	200	270	2980	95.8	0.91	349	332	320	641	1.8	2.2	7.5
IE3-355M-2	250	340	2982	95.8	0.91	431	410	395	801	1.6	2.2	7.5
IE3-355L-2	315	430	2982	95.8	0.91	544	516	498	1009	1.6	2.2	7.5

IE3 Technical Parameter SPEED 1500RPM 4-POLE 50Hz

Type	Rated output		Rated Speed (r/min)	Eff (100%)	Power Factor (cosΦ)	Current(A)			Rated Torque (Nm)	Ts/Tn	Tmax/Tn	Is/ln
Type	KW	Hp	Rated Speed (r/min)	Eff (100%)	Power Factor (cosΦ)	380V 50Hz	400V 50Hz	415V 50Hz	Rated Torque (Nm)	Ts/Tn	Tmax/Tn	Is/ln
IE3-63 1-4	0.12	0.17	1380	64.8	0.72	0.39	0.37	0.36	0.83	2.1	2.2	6.6
IE3-63 2-4	0.18	0.25	1380	69.9	0.73	0.54	0.51	0.49	1.25	2.1	2.2	6.6
IE3-71 1-4	0.25	0.37	1390	73.5	0.73	0.71	0.67	0.65	1.72	2.1	2.2	6.6
IE3-71 2-4	0.37	0.5	1390	77.3	0.74	0.98	0.93	0.90	2.54	2.1	2.2	6.6
IE3-80 1-4	0.55	0.75	1410	80.8	0.75	1.38	1.31	1.26	3.73	2.4	2.3	6.6
IE3-80 2-4	0.75	1	1420	82.5	0.75	1.82	1.73	1.67	5.04	2.3	2.3	6.6
IE3-90S-4	1.1	1.5	1430	84.1	0.76	2.58	2.45	2.37	7.35	2.3	2.3	6.8
IE3-90S-4	1.1	1.5	1430	84.1	0.76	2.58	2.45	2.37	7.35	2.3	2.3	6.8
IE3-90L-4	1.5	2	1430	85.3	0.77	3.43	3.26	3.14	10.02	2.3	2.3	7.0
IE3-90L-4	1.5	2	1430	85.3	0.77	3.43	3.26	3.14	10.02	2.3	2.3	7.0
IE3-100L1-4	2.2	3	1435	86.7	0.81	4.89	4.64	4.47	14.6	2.3	2.3	7.6
IE3-100L1-4	2.2	3	1435	86.7	0.81	4.89	4.64	4.47	14.6	2.3	2.3	7.6
IE3-100L2-4	3	4	1435	87.7	0.82	6.50	6.18	5.96	20.0	2.3	2.3	7.6
IE3-100L2-4	3	4	1435	87.7	0.82	6.50	6.18	5.96	20.0	2.3	2.3	7.6
IE3-112M-4	4	5.5	1440	88.6	0.82	8.50	8.10	7.80	26.5	2.2	2.3	7.8
IE3-132S-4	5.5	7.5	1460	89.6	0.83	11.4	10.8	10.4	36.0	2.0	2.3	7.9
IE3-132M-4	7.5	10	1460	90.4	0.84	15.2	14.4	13.9	49.1	2.0	2.3	7.5
IE3-160M-4	11	15	1465	91.4	0.85	21.8	20.7	20.0	71.7	2.2	2.3	7.7
IE3-160L-4	15	20	1470	92.1	0.86	29.1	27.7	26.7	97.4	2.2	2.3	7.8
IE3-180M-4	18.5	25	1470	92.6	0.86	36.2	34.4	33.1	120.2	2.0	2.3	7.8
IE3-180L-4	22	30	1470	93.0	0.86	42.3	40.2	38.8	142.9	2.0	2.3	7.8
IE3-200L-4	30	40	1475	93.6	0.86	56.7	53.9	51.9	194.2	2.0	2.3	7.3
IE3-225S-4	37	50	1485	93.9	0.86	69.7	66.2	63.8	238	2.0	2.3	7.4
IE3-225M-4	45	60	1485	94.2	0.86	83.5	79.3	76.5	289	2.0	2.3	7.4
IE3-250M-4	55	75	1485	94.6	0.86	101.7	96.6	93.1	354	2.2	2.3	7.4
IE3-250M-4	55	75	1485	94.6	0.86	101.7	96.6	93.1	354	2.2	2.3	7.4
IE3-280S-4	75	100	1486	95.0	0.88	138	131	126	482	2.0	2.3	6.9
IE3-280S-4	75	100	1486	95.0	0.88	138	131	126	482	2.0	2.3	6.9
IE3-280M-4	90	125	1486	95.2	0.88	165	157	151	578	2.0	2.3	6.9
IE3-280M-4	90	125	1486	95.2	0.88	165	157	151	578	2.0	2.3	6.9
IE3-315S-4	110	150	1488	95.4	0.89	199	189	183	706	2.0	2.2	7.0
IE3-315S-4	110	150	1488	95.4	0.89	199	189	183	706	2.0	2.2	7.0
IE3-315M-4	132	180	1488	95.6	0.89	239	227	219	847	2.0	2.2	7.0
IE3-315L1-4	160	200	1488	95.8	0.89	289	274	264	1027	2.0	2.2	7.1
IE3-315L2-4	200	270	1490	96.0	0.90	360	342	330	1282	2.0	2.2	7.1
IE3-355M-4	250	340	1490	96.0	0.90	450	428	412	1602	2.0	2.2	7.1
IE3-355L-4	315	430	1490	96.0	0.90	567	539	519	2019	2.0	2.2	7.1

IE3 Technical Parameter SPEED 1000RPM 6-POLE 50Hz

Type	Rated output		Rated Speed (r/min)	Eff (100%)	Power Factor (cosΦ)	Current(A)			Rated Torque (Nm)	Ts/Tn	Tmax/Tn	Is/In
	KW	Hp				380V 50Hz	400V 50Hz	415V 50Hz
IE3-711-6	0.18	0.25	910	63.9	0.66	0.65	0.62	0.59	1.89	1.9	2.0	6.0
IE3-712-6	0.25	0.37	910	68.6	0.68	0.83	0.79	0.76	2.62	1.9	2.0	6.0
IE3-801-6	0.37	0.5	920	73.5	0.70	1.13	1.07	1.03	3.84	1.9	2.0	6.0
IE3-802-6	0.55	0.75	930	77.2	0.72	1.57	1.49	1.44	5.65	1.9	2.1	6.0
IE3-90S-6	0.75	1	935	78.9	0.71	2.07	1.96	1.89	7.66	2.0	2.1	6.0
IE3-90L-6	1.1	1.5	935	81.0	0.73	2.91	2.76	2.66	11.24	2.0	2.1	6.0

IE3-100L-6	1.5	2	940	82.5	0.73	3.84	3.65	3.52	15.2	2.0	2.1	6.5

IE3-112M-6	2.2	3	945	84.3	0.74	5.44	5.17	4.98	22.2	2.0	2.1	6.6

IE3-132S-6	3	4	950	85.6	0.74	7.2	6.80	6.60	30.2	2.0	2.1	6.8

IE3-132M1-6	4	5.5	950	86.8	0.74	9.3	8.90	8.60	40.2	2.0	2.1	6.8

IE3-132M2-6	5.5	7.5	955	88.0	0.75	12.5	11.9	11.5	55.0	2.0	2.1	7.0
IE3-160M-6	7.5	10	960	89.1	0.79	16.4	15.6	15.0	74.6	2.0	2.1	7.0
IE3-160L-6	11	15	960	90.3	0.80	23.5	22.3	21.5	109.4	2.0	2.1	7.2
IE3-180L-6	15	20	978	91.2	0.81	30.9	29.3	28.3	146.5	2.0	2.1	7.3
IE3-200L1-6	18.5	25	980	91.7	0.81	37.9	36.0	34.7	180.3	2.0	2.1	7.3
IE3-200L2-6	22	30	980	92.2	0.81	43.7	41.5	40.0	214.4	2.0	2.1	7.4
IE3-225M-6	30	40	980	92.9	0.83	58.5	55.6	53.5	292	2.0	2.1	6.9
IE3-250M-6	37	50	985	93.3	0.84	71.8	68.2	65.8	359	2.0	2.1	7.1
IE3-280S-6	45	60	985	93.7	0.85	85.9	81.6	78.7	436	2.0	2.0	7.3

IE3-280M-6	55	75	985	94.1	0.86	105	99.0	96.0	533	2.0	2.0	7.3

IE3-315S-6	75	100	985	94.6	0.84	142	135	130	727	2.0	2.0	6.6

IE3-315M-6	90	125	988	94.9	0.85	170	161	155	870	2.0	2.0	6.7

IE3-315L1-6	110	150	988	95.1	0.85	205	194	187	1063	2.0	2.0	6.7

IE3-315L2-6	132	180	988	95.4	0.86	245	232	224	1276	2.0	2.0	6.8
IE3-355M1-6	160	200	990	95.6	0.86	296	281	271	1543	1.8	2.0	6.8
IE3-355M2-6	200	270	990	95.8	0.87	361	343	330	1929	1.8	2.0	6.8
IE3-355L-6	250	340	990	95.8	0.87	451	429	413	2412	1.8	2.0	6.8

IE4 Technical Parameter SPEED 3000RPM 2-POLE 50Hz

Type	Rated output		Rated Speed (r/min)	Eff (100%)	Power Factor (cosΦ)	Current(A)			Ts/Tn	Tmax/Tn	Is/In
	KW	Hp				380V 50Hz	400V 50Hz	415V 50Hz
IE4-80M1-2	0.75	1	2870	83.5	0.83	1.60	1.60	1.50	2.2	2.3	8.5
IE4-80M2-2	1.1	1.5	2870	85.2	0.83	2.40	2.30	2.20	2.2	2.3	8.5
IE4-90S-2	1.5	2	2900	86.5	0.85	3.10	3.00	2.90	2.2	2.3	9.0
IE4-90L-2	2.2	3	2900	88.0	0.86	4.40	4.30	4.20	2.2	2.3	9.0

IE4-100L-2	3	4	2900	89.1	0.87	5.90	5.70	5.50	2.2	2.3	9.5

IE4-112M-2	4	5.5	2910	90.0	0.88	7.70	7.50	7.20	2.2	2.3	9.5

IE4-132S1-2	5.5	7.5	2940	90.9	0.88	10.4	10.2	9.80	2.0	2.3	9.5
IE4-132S2-2	7.5	10	2940	91.7	0.89	14.0	13.6	13.1	2.0	2.3	9.5
IE4-160M1-2	11	15	2950	92.6	0.89	20.3	19.8	19.0	2.0	2.3	9.5
IE4-160M2-2	15	20	2950	93.3	0.89	27.4	26.7	25.8	2.0	2.3	9.5
IE4-160L-2	18.5	25	2950	93.7	0.89	33.7	32.8	31.6	2.0	2.3	9.5
IE4-180M-2	22	29	2960	94.0	0.89	40.0	38.9	37.5	2.0	2.3	9.5
IE4-200L1-2	30	40	2970	94.5	0.89	54.2	52.8	50.9	2.0	2.3	9.0

IE4-200L2-2	37	49	2970	94.8	0.89	66.6	64.9	62.5	2.0	2.3	9.0

IE4-225M-2	45	60	2970	95.0	0.89	80.9	78.7	75.9	2.0	2.3	9.0

IE4-250M-2	55	73	2975	95.3	0.89	98.5	95.9	92.5	2.0	2.3	9.0
IE4-280S-2	75	100	2980	95.6	0.89	134	130	126	1.8	2.3	8.5
IE4-280M-2	90	120	2980	95.8	0.89	160	156	150	1.8	2.3	8.5
IE4-315S-2	110	147	2980	96.0	0.89	196	190	184	1.8	2.3	8.5
IE4-315M-2	132	176	2980	96.2	0.89	234	228	220	1.8	2.3	8.5
IE4-315L1-2	160	213	2980	96.3	0.89	284	276	266	1.8	2.2	8.5
IE4-315L2-2	185	247	2980	96.4	0.89	328	319	307	1.8	2.2	8.5

IE4-315L2-2	200	267	2980	96.5	0.89	354	344	332	1.8	2.2	8.5

IE4-355M1-2	220	293	2985	96.5	0.91	381	370	357	1.8	2.2	8.5

IE4-355M2-2	250	333	2985	96.5	0.91	433	421	406	1.6	2.2	8.5
IE4-355L1-2	280	373	2985	96.5	0.91	484	472	454	1.6	2.2	8.5
IE4-355L2-2	315	420	2985	96.5	0.91	545	530	511	1.6	2.2	8.5

IE4 Technical Parameter SPEED 1500RPM 4-POLE 50Hz

Type	Rated output		Rated Speed (r/min)	Eff (100%)	Power Factor (cosΦ)	Current(A)			Ts/Tn	Tmax/Tn	Is/ln
Type	KW	Hp	Rated Speed (r/min)	Eff (100%)	Power Factor (cosΦ)	380V 50Hz	400V 50Hz	415V 50Hz	Ts/Tn	Tmax/Tn	Is/ln
IE4-80M1-4	0.55	0.7	1435	83.9	0.75	1.30	1.30	1.30	2.3	2.3	8.5
IE4-80M2-4	0.75	1	1435	85.7	0.74	1.80	1.80	1.70	2.3	2.3	8.5
IE4-90S-4	1.1	1.5	1440	87.2	0.75	2.60	2.50	2.40	2.3	2.3	8.5
IE4-90L-4	1.5	2	1440	88.2	0.76	3.40	3.30	3.20	2.3	2.3	9.0
IE4-100L1-4	2.2	3	1460	89.5	0.79	4.70	4.60	4.40	2.3	2.3	9.0
IE4-100L1-4	2.2	3	1460	89.5	0.79	4.70	4.60	4.40	2.3	2.3	9.0
IE4-100L2-4	3	4	1460	90.4	0.80	6.30	6.10	5.90	2.3	2.3	9.5
IE4-100L2-4	3	4	1460	90.4	0.80	6.30	6.10	5.90	2.3	2.3	9.5
IE4-112M-4	4	5.5	1460	91.1	0.80	8.30	8.10	7.8	2.3	2.3	9.5
IE4-132S-4	5.5	7.5	1470	91.9	0.80	11.4	11.1	10.7	2.0	2.3	9.5
IE4-132M-4	7.5	10	1470	92.6	0.81	15.2	14.8	14.3	2.0	2.3	9.5
IE4-160M-4	11	15	1475	93.3	0.83	21.6	21.0	20.3	2.0	2.3	9.5
IE4-160L-4	15	20	1475	93.9	0.84	28.9	28.1	27.1	2.0	2.3	9.5
IE4-180M-4	18.5	25	1480	94.2	0.85	35.1	34.2	33.0	2.0	2.3	9.5
IE4-180L-4	22	29	1480	94.5	0.85	41.6	40.5	39.1	2.0	2.3	9.5
IE4-200L-4	30	40	1485	94.9	0.85	56.5	55.0	53.0	2.0	2.3	9.0
IE4-225S-4	37	49	1485	95.2	0.85	69.5	67.6	65.2	2.0	2.3	9.0
IE4-225S-4	37	49	1485	95.2	0.85	69.5	67.6	65.2	2.0	2.3	9.0
IE4-225M-4	45	60	1485	95.4	0.85	84.3	82.1	79.1	2.0	2.3	9.0
IE4-225M-4	45	60	1485	95.4	0.85	84.3	82.1	79.1	2.0	2.3	9.0
IE4-250M-4	55	73	1485	95.7	0.86	102	98.8	95.3	2.0	2.3	9.0
IE4-280S-4	75	100	1485	96.0	0.87	136	133	128	2.0	2.3	8.5
IE4-280M-4	90	120	1488	96.1	0.88	162	157	152	2.0	2.3	8.5
IE4-315S-4	110	150	1149	96.3	0.89	195	190	183	1.8	2.2	8.5
IE4-315M-4	132	180	1490	96.4	0.89	234	228	219	1.8	2.2	8.5
IE4-315L1-4	160	220	1490	96.6	0.90	280	272	262	1.8	2.2	8.5
IE4-315L2-4	185	250	1490	96.7	0.90	323	314	303	1.8	2.2	8.5
IE4-315L2-1	200	270	1490	96.7	0.90	349	340	328	1.8	2.2	8.5
IE4-355M1-4	220	300	1490	96.7	0.90	384	374	360	1.8	2.2	8.5
IE4-355M1-4	220	300	1490	96.7	0.90	384	374	360	1.8	2.2	8.5
IE4-355M2-4	250	340	1490	96.7	0.90	436	425	409	1.8	2.2	8.5
IE4-355M2-4	250	340	1490	96.7	0.90	436	425	409	1.8	2.2	8.5
IE4-355L1-4	280	380	1490	96.7	0.90	489	476	459	1.8	2.2	8.5
IE4-355L2-4	315	420	1490	96.7	0.90	550	519	500	1.8	2.2	8.5
IE4-3551-4	355	480	1490	96.7	0.88	634	617	595	0.9	1.8	8.5
IE4-3552-4	400	540	1490	96.7	0.88	714	695	670	0.9	1.8	8.5

IE4 Technical parameter SPEED 1000RPM 6-POLE 50HZ

Type	Rated output		Rated Speed (r/min)	Eff (100%)	Power Factor (cosΦ)	Current(A)			Ts/Tn	Tmax/Tn	Is/ln
	KW	Hp				380V 50Hz	400V 50Hz	415V 50Hz

IE4-90S-6	0.75	1	950	82.7	0.70	2.00	1.90	1.90	2.1	2.1	7.5
IE4-90L-6	1.1	1.5	950	84.5	0.70	2.80	2.40	2.20	2.1	2.1	7.5
IE4-100L-6	1.5	2	955	85.9	0.71	3.70	3.60	3.50	2.1	2.1	7.5
IE4-112M-6	2.2	3	960	87.4	0.71	5.40	5.30	5.10	2.1	2.1	7.5

IE4-132S-6	3	4	970	88.6	0.71	7.20	7.10	6.80	2.0	2.1	7.5
IE4-132M1-6	4	6	970	89.5	0.72	9.40	10.3	9.90	2.0	2.1	8.0

IE4-132M2-6	5.5	7.5	970	90.5	0.72	12.8	12.5	12.0	2.0	2.1	8.0
IE4-160M-6	7.5	10	975	91.3	0.76	16.4	33.8	32.6	2.0	2.1	8.0

IE4-160L-6	11	15	975	92.3	0.77	23.5	22.9	22.1	2.0	2.1	8.5
IE4-180L-6	15	20	980	92.9	0.80	30.7	29.9	28.8	2.0	2.1	8.5

IE4-200L1-6	18.5	25	985	93.4	0.80	37.6	36.6	35.3	2.0	2.1	8.5
IE4-200L2-6	22	29	985	93.7	0.81	44	42.9	41.3	2.0	2.1	8.5

IE4-225M-6	30	40	985	94.2	0.82	59	57.5	55.4	2.0	2.1	8..3
IE4-225M-6	37	49	985	94.5	0.83	71.7	69.8	67.3	2.0	2.1	8.3

IE4-280S-6	45	60	990	94.8	0.83	86.9	84.6	81.6	2.0	2.0	8.5
IE4-280M-6	55	73	990	95.1	0.84	105	133.7	128.8	2.0	2.0	8.5

IE4-315S-6	75	100	990	95.4	0.84	142	138.4	133.4	1.6	2.0	8.0
IE4-315M-6	90	120	990	95.6	0.85	168	163.8	157.9	1.6	2.0	8.0

IE4-315L1-6	110	150	990	95.8	0.85	205	199.8	192.6	1.6	2.0	8.0
IE4-315L2-6	132	180	990	96.0	0.86	243	236.5	227.9	1.6	2.0	8.0

IE4-355M1-6	160	220	990	96.2	0.86	294	286.0	275.7	1.6	2.0	8.0
IE4-355M2-6	185	250	990	96.3	0.86	339	330.4	318.4	1.6	2.0	8.0

IE4-355M2-6	200	270	990	96.3	0.86	367	357.1	344.2	1.6	2.0	8.0
IE4-355L1-6	220	300	990	96.4	0.86	403	384.0	370.0	1.6	2.0	8.0

IE4-355L2-6	250	340	990	96.5	0.86	458	445.5	429.4	1.6	2.0	8.0
IE4-355 1-6	280	380	990	96.6	0.82	537	522.7	503.8	0.9	1.8	7.9

IE4-355 2-6	315	420	990	96.6	0.82	604	588.1	566.8	0.9	1.8	7.9

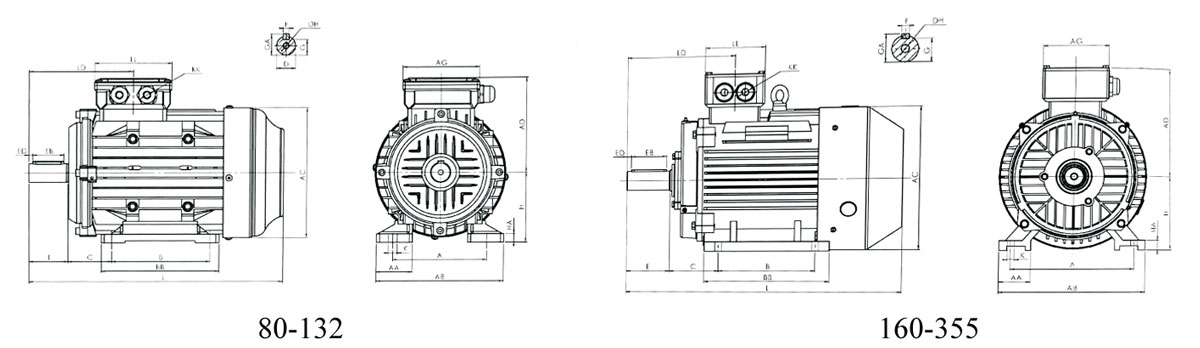

External dimensions IM B3 H80-355

Type	Poles	A	AA	AB	AC	AD	AG	B	BB	C	D	DH	E	EB	ED	F	G	GA	H	HA	K	KK	L	LD	LL
80	2, 4, 6, 8	125	34	160	158	147	104	100	150	50	19	M6×16	40	30	5	6	15.5	21.5	80	10	4-Φ10	2-M25×1.5	304	119	104
90S	2, 4, 6, 8	140	36	176	175	155	104	100	161	56	24	M8×19	50	40	5	8	20	27	90	12	4-Φ10	2-M25×1.5	336	143	104
90L	2, 4, 6, 8	140	36	176	175	155	104	125	186	56	24	M8×19	50	40	5	8	20	27	90	12	4-Φ10	2-M25×1.5	361	143	104
100L	2, 4, 6, 8	160	40	200	198	166	104	140	213	63	28	M10×22	60	50	5	8	24	31	100	14	4-Φ12	2-M25×1.5	406	147	104
112M	2, 4, 6, 8	190	50	240	219	182	124	140	225	70	28	M10×22	60	50	5	8	24	31	112	15	4-Φ12	2-M32×1.5	452	147	114
132S	2, 4, 6, 8	216	55	262	258	203	124	140	200	89	38	M12×28	80	65	7.5	10	33	41	132	18	4-Φ12	2-M32×1.5	470	172	114
132M	4, 6, 8	216	55	262	258	203	124	178	238	89	38	M12×28	80	65	7.5	10	33	41	132	18	4-Φ12	2-M32×1.5	508	172	114
160M	2, 4, 6, 8	254	65	314	315	251	162	210	260	108	42	M16×36	110	90	10	12	37	45	160	20	4-Φ14.5	2-M40×1.5	608	256	154
160L	2, 4, 6, 8	254	65	314	315	251	162	254	304	108	42	M16×36	110	90	10	12	37	45	160	20	4-Φ14.5	2-M40×1.5	652	256	154
180M	2, 4, 8	279	70	349	355	267	162	241	311	121	48	M16×36	110	90	10	14	42.5	51.5	180	22	4-Φ14.5	2-M40×1.5	688	271	154
180L	4, 6, 8	279	70	349	355	267	162	279	349	121	48	M16×36	110	90	10	14	42.5	51.5	180	22	4-Φ14.5	2-M40×1.5	726	271	154
200L	2, 4, 6, 8	318	70	388	397	299	210	305	369	133	55	M20×42	110	100	5	16	49	59	200	25	4-Φ16.5	2-M50×1.5	779	296	190
225S	4, 8	356	75	431	446	322	210	286	368	149	60	M20×42	140	125	7.5	18	53	64	225	28	4-Φ18.5	2-M50×1.5	824	329	190
225M	2	356	75	431	446	322	210	311	393	149	55	M20×42	110	100	5	16	49	59	225	28	4-Φ18.5	2-M50×1.5	819	299	190
225M	4, 6, 8	356	75	431	446	322	210	311	393	149	60	M20×42	140	125	7.5	18	53	64	225	28	4-Φ18.5	2-M50×1.5	849	329	190
250M	2	406	80	484	485	358	248	349	445	168	60	M20×42	140	125	7.5	18	53	64	250	30	4-Φ24	2-M63×1.5	910	347	218
250M	4, 6, 8	406	80	484	485	358	248	349	445	168	65	M20×42	140	125	7.5	18	58	69	250	30	4-Φ24	2-M63×1.5	910	347	218
280S	2	457	85	542	547	387	248	368	485	190	65	M20×42	140	125	7.5	18	58	69	280	35	4-Φ24	2-M63×1.5	982	355.5	218
2808	4, 6	457	85	542	547	387	248	368	485	190	75	M20×42	140	125	7.5	20	67.5	79.5	280	35	4-Φ24	2-M63×1.5	982	355.5	218
280M	2	457	85	542	547	387	248	419	536	190	65	M20×42	140	125	7.5	18	58	69	280	35	4-Φ24	2-M63×1.5	1033	355.5	218
280M	4, 6, 8	457	85	542	547	387	248	419	536	190	75	M20×42	140	125	7.5	20	67.5	79.5	280	35	4-Φ24	2-M63×1.5	1033	355.5	218
3155	2	508	120	628	620	527	320	406	570	216	65	M20×42	140	125	7.5	18	58	69	315	45	4-Φ28	2-M63×1.5	1194	397	280
3155	4, 6, 8, 10	508	120	628	620	527	320	406	570	216	80	M20×42	170	160	5	22	71	85	315	45	4-Φ28	2-M63×1.5	1224	427	280
315M	2	508	120	628	620	527	320	457	680	216	65	M20×42	140	125	7.5	18	58	69	315	45	4-Φ28	2-M63×1.5	1304	397	280
315M	4, 6, 8, 10	508	120	626	620	527	320	457	680	216	80	M20×42	170	160	5	22	71	85	315	45	4-Φ28	2-M63×1.5	1334	427	280
316L	2	508	120	628	620	527	320	508	680	216	65	M20×42	140	125	7.5	18	58	69	315	45	4-Φ28	2-M63×1.5	1304	397	280
315L	4, 6, 8, 10	508	120	628	620	527	320	608	680	216	80	M20×42	170	160	5	22	71	85	315	45	4-Φ28	2-M63×1.5	1334	427	280
365M	2	610	116	726	698	642	380	660	760	254	75	M20×50	140	130	5	20	67	79.5	355	52	6-Φ28	2-M63×1.5	1486	414	330
355M	4, 6, 8, 10	610	116	726	698	642	380	560	750	254	95	M24×50	170	160	5	25	86	100	355	52	6-Φ28	2-M63×1.5	1516	444	330
355L	2	610	116	726	698	642	380	630	750	254	75	M20×50	140	130	5	20	67.5	79.5	355	52	6-Φ28	2-M63×1.5	1486	414	330
355L	4, 6, 8, 10	610	116	726	698	642	380	630	760	264	95	M24×50	170	160	5	25	86	100	355	52	6-Φ28	2-M63×1.5	1516	444	330

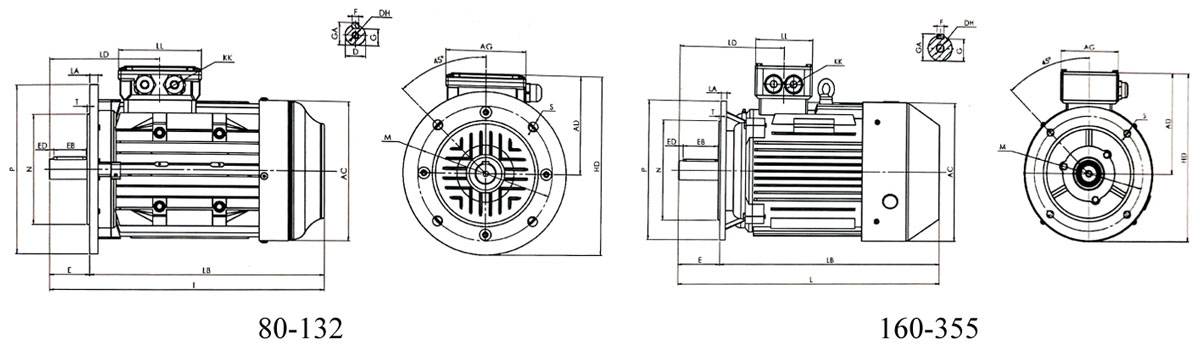

External dimensions IM B5 H80-355

Type	Poles	AC	AD	AG	D	DH	E	EB	ED	F	G	GA	HD	KK	L	LA	LB	LD	LL	M	N	P	S	T
80	2, 4, 6, 8	158	147	104	19	M6×16	40	30	5	6	15.5	21.5	254.5	1-M25×1.5	304	12	264	112	104	165	130	200	12	3.5
90S	2, 4, 6, 8	175	155	104	24	M8×19	50	40	5	8	20	27	262	1-M25×1.5	336	12	286	130	104	165	130	200	12	3.5
90L	2, 4, 6, 8	175	155	104	24	M8×19	50	40	5	8	20	27	262	1-M25×1.5	361	12	311	130	104	165	130	200	12	3.5
100L	2, 4, 6, 8	198	166	104	28	M10×22	60	50	5	8	24	31	298.5	1-M32×1.5	406	13	346	139	104	215	180	250	14.5	4
112M	2, 4, 6, 8	219	182	124	28	M10×22	60	50	5	8	24	31	315	2-M32×1.5	452	14	392	147	114	215	180	250	14.5	4
132S	2, 4, 6, 8	258	203	124	38	M12×28	80	65	7.5	10	33	41	353	2-M32×1.5	470	14	390	172	114	265	230	300	14.5	4
132M	4, 6, 8	258	203	124	38	M12×28	80	65	7.5	10	33	41	353	2-M32×1.5	508	14	428	172	114	265	230	300	14.5	4
160M	2, 4, 6, 8	315	251	162	42	M16×36	110	90	10	12	37	45	426	2-M40×1.5	608	15	498	256	154	300	250	350	18.5	5
160L	2, 4, 6, 8	315	251	162	42	M16×36	110	90	10	12	37	45	426	2-M40×1.5	652	15	542	256	154	300	250	350	18.5	5
180M	2, 4, 8	355	267	162	48	M16×36	110	90	10	14	42.5	51.5	444.5	2-M40×1.5	688	15	578	271	154	300	250	350	18.5	5
180L	4, 6, 8	355	267	162	48	M16×36	110	90	10	14	42.5	51.5	444.5	2-M40×1.5	726	15	616	271	154	300	250	350	18.5	5
200L	2, 4, 6, 8	397	299	210	55	M20×42	110	100	5	16	49	59	449	2-M50×1.5	779	17	669	296	190	350	300	400	18.5	5
225S	4, 8	446	322	210	60	M20×42	140	125	7.5	18	53	64	547	2-M50×1.5	824	20	684	329	190	400	350	450	18.5	5
225M	2	446	322	210	55	M20×42	110	100	5	16	49	59	547	2-M50×1.5	819	20	709	299	190	400	350	450	18.5	5
225M	4, 6, 8	446	322	210	60	M20×42	140	125	7.5	18	53	64	547	2-M50×1.5	849	20	709	329	190	400	350	450	18.5	5
250M	2	485	358	248	60	M20×42	140	125	7.5	18	53	64	633	2-M63×1.5	910	22	770	347	218	500	450	550	18.5	5
250M	4, 6, 8	485	358	248	65	M20×42	140	125	7.5	18	58	69	633	2-M63×1.5	910	22	770	347	218	500	450	550	18.5	5
280S	2	547	387	248	65	M20×42	140	125	7.5	18	58	69	662	2-M63×1.5	982	22	842	356	218	500	450	550	185	5
280S	4, 6, 8	547	387	248	75	M20×42	140	125	7.5	20	67.5	79.5	662	2-M63×1.5	982	22	842	356	218	500	450	550	18.5	5
280M	2	547	387	248	65	M20×42	140	125	7.5	18	58	69	662	2-M63×1.5	1033	22	893	356	218	500	450	550	18.5	5
280M	4, 6, 8	547	387	248	75	M20×42	140	125	7.5	20	67.5	79.5	662	2-M63×1.5	1033	22	893	356	218	500	450	550	18.5	5
315S	2	620	527	320	65	M20×42	140	125	7.5	18	58	69	857	2-M63×1.5	1194	22	1054	397	280	600	550	660	24	6
315S	4, 6, 8, 10	620	527	320	80	M20×42	170	160	5	22	71	85	857	2-M63×1.5	1224	22	1054	427	280	600	550	660	24	6
315M	2	620	527	320	65	M20×42	140	125	7.5	18	58	69	857	2-M63×1.5	1304	22	1164	397	280	600	550	660	24	6
315M	4, 6, 8, 10	620	527	320	80	M20×42	170	160	5	22	71	85	857	2-M63×1.5	1334	22	1164	427	280	600	550	660	24	6
315L	2	620	527	320	65	M20×42	140	125	7.5	18	58	69	857	2-M63×1.5	1304	22	1164	397	280	600	550	660	24	6
315L	4, 6, 8, 10	620	527	320	80	M20×42	170	160	5	22	71	85	857	2-M63×1.5	1334	22	1164	427	280	600	550	660	24	6
355M	2	698	642	380	75	M20×50	140	130	5	20	67.5	79.5	1042	2-M63×1.5	14B6	25	1346	414	330	740	680	800	24	6
355M	4, 6, 8, 10	698	642	380	95	M24×50	170	160	5	25	86	100	1042	2-M63×1.5	1516	25	1346	414	330	740	680	800	24	6
355L	2	698	642	380	75	M20×50	140	130	5	20	67.5	79.5	1042	2.M83×1.5	1486	25	1346	414	330	740	680	800	24	6
355L	4, 6, 8, 10	698	642	380	95	M24×50	170	160	5	25	86	100	1042	2-M63×1.5	1516	25	1346	414	330	740	680	800	24	6

External dimensions IM B35 H80-355

Type	Poles	A	AA	AB	AC	AD	AG	B	BB	C	D	DH	E	EB	ED	F	G	GA	H	HA	K	KK	L	LA	LB	LD	LL	M	N	P	S	T
80	2, 4, 6, 8	125	34	160	158	147	104	100	150	50	19	M6×16	40	30	5	6	15.5	21.5	80	10	4-Φ10	1-M25×1.5	304	12	264	112	104	165	130	200	12	3.5
90S	2, 4, 6, 8	140	36	176	175	155	104	100	161	56	24	M8×19	50	40	5	8	20	27	90	12	4-Φ10	1-M25×1.5	336	12	286	130	104	165	130	200	12	3.5
90L	2, 4, 6, 8	140	36	176	175	155	104	125	186	56	24	MB×19	50	40	5	8	20	27	90	12	4-Φ10	1-M25×1.5	361	12	311	130	104	165	130	200	12	3.5
100L	2, 4, 6, 8	160	40	200	198	166	104	140	213	63	28	M10×22	60	50	5	8	24	31	100	14	4-Φ12	1-M32×1.5	406	13	346	139	104	215	180	250	15	4
112M	2, 4, 6, 8	190	50	240	219	182	124	140	225	70	28	M10×22	60	50	5	8	24	31	112	15	4-Φ12	2-M32×1.5	452	14	392	147	114	215	180	250	15	4
132S	2, 4, 6, 8	216	55	262	258	203	124	140	200	89	38	M12×28	80	65	7.5	10	33	41	132	18	4-Φ12	2-M32×1.5	470	14	390	172	114	265	230	300	15	4
132M	4, 6, 8	216	55	262	258	203	124	178	238	89	38	M12×28	80	65	7.5	10	33	41	132	18	4-Φ12	2-M32×1.5	508	14	428	172	114	265	230	300	15	4
160M	2, 4, 6, 8	254	65	314	315	251	162	210	260	108	42	M16×36	110	90	10	12	37	45	160	20	4-Φ14.5	2-M40×1.5	608	15	498	256	154	300	250	350	19	5
160L	2, 4, 6, 8	254	65	314	315	251	162	254	304	108	42	M16×36	110	90	10	12	37	45	160	20	4-Φ14.5	2-M40×1.5	652	15	542	256	154	300	250	350	19	5
180M	2, 4, 8	279	70	349	355	267	162	241	311	12	48	M16×36	110	90	10	14	42.5	51.5	180	22	4-Φ14.5	2-M40×1.5	688	15	578	271	154	300	250	350	19	5
180L	4, 6, 8	279	70	349	355	267	162	279	349	12	48	M16×36	110	90	10	14	42.5	51.5	180	22	4-Φ14.5	2-M40×1.5	726	15	618	271	154	300	250	350	19	5
200L	2, 4, 6, 8	318	70	388	397	299	210	305	369	133	55	M20×42	110	100	5	16	49	59	200	25	4-Φ16.5	2-M50×1.5	779	17	669	296	190	350	300	400	19	5
225S	4, 8	356	75	431	446	322	210	286	368	149	60	M20×42	140	125	7.5	18	53	64	225	28	4-Φ18.5	2-M50×1.5	824	20	684	329	190	400	350	450	19	5
225M	2	356	75	431	446	322	210	311	393	149	55	M20×42	110	100	5	16	49	59	225	28	4-φ18.5	2-M50×1.5	819	20	709	299	190	400	350	450	19	5
225M	4, 6, 8	356	75	431	446	322	210	311	393	149	60	M20×42	140	125	7.5	18	53	64	225	28	4-φ18.5	2-M50×1.5	849	20	709	329	190	400	350	450	19	5
250M	2	406	80	484	485	358	248	349	445	168	60	M20×42	140	125	7.5	18	53	64	250	30	4-Φ24	2-M63×1.5	910	22	770	347	218	500	450	550	19	5
250M	4, 6, 8	406	80	484	485	358	248	349	445	168	65	M20×42	140	125	7.5	18	58	69	250	30	4-Φ24	2-M63×1.5	910	22	770	347	218	500	450	550	19	5
280S	2	457	85	542	547	387	248	368	485	190	65	M20×42	140	125	7.5	18	58	69	280	35	4-Φ24	2-M63×1.5	982	22	842	355.	5218	500	450	550	19	5
280S	4, 6, 8	457	85	542	547	387	248	368	485	190	75	M20×42	140	125	7.5	20	67.5	79.5	280	35	4-φ24	2-M63×1.5	982	22	842	355.	5218	500	450	550	19	5
280M	2	457	85	542	547	387	248	419	536	190	65	M20×42	140	125	7.5	18	58	69	280	35	4-φ24	2-M63×1.5	1033	22	893	355.	5218	500	450	550	19	5
280M	4, 6, 8	457	85	542	547	387	248	419	536	190	75	M20×42	40	125	7.5	20	67.5	79.5	280	35	4-φ24	2-M63×1.5	1033	22	893	355.	5218	500	450	550	19	5
315S	2	508	120	628	620	527	320	406	570	216	65	M20×42	140	125	7.5	18	58	69	315	45	4-φ28	2.M63×1.5	1194	22	1054	397	280	600	550	660	24	6
315S	4, 6, 8, 10	508	120	628	620	527	320	406	570	216	80	M20×42	170	160	5	22	71	85	315	45	4-φ28	2-M63×1.5	1224	22	1054	427	280	600	550	660	24	6
315M	2	508	120	628	620	527	320	457	680	216	65	M20×42	140	125	7.5	18	58	69	315	45	4-φ28	2-M63×1.5	1304	22	1164	397	280	600	550	660	24	6
315M	4, 6, 8, 10	508	120	628	620	527	320	457	680	216	80	M20×42	170	160	5	22	71	85	315	45	4-Φ28	2-M63×1.5	1334	22	1164	427	280	600	550	660	24	6
315L	2	508	120	628	620	527	320	508	680	216	65	M20×47	140	125	7.5	18	58	69	315	45	4-Φ28	2-M63×1.5	1304	22	1164	397	280	600	550	660	24	6
315L	4, 6, 8, 10	508	120	628	620	527	320	508	680	216	B0	M20×A2	170	160	5	22	71	85	315	45	4-φ28	2-M63×1.5	1334	22	1164	427	280	600	550	660	24	6
355M	2	610	116	726	698	642	380	560	750	254	75	M20×50	40	130	5	20	67.5	79.5	355	52	6-Φ28	2-M63×1.5	1486	25	1346	414	330	740	680	800	24	6
355M	4, 6, 8, 10	610	116	726	698	642	380	560	750	254	95	M4×50	170	60	5	25	86	100	355	52	6-Φ28	2-M63×1.5	1516	25	1346	414	330	740	680	800	24	6
355L	2	610	116	726	698	642	380	630	750	254	75	M20×50	140	130	5	20	67.5	79.5	355	52	6-Φ28	2-M63×1.5	1486	25	1346	414	330	740	680	800	24	6
355L	4, 6, 8, 10	610	116	726	698	642	380	630	750	254	95	M24×50	170	160	5	25	86	100	355	52	6-Φ28	2-M63×1.5	1516	25	1346	414	330	740	680	800	24	6

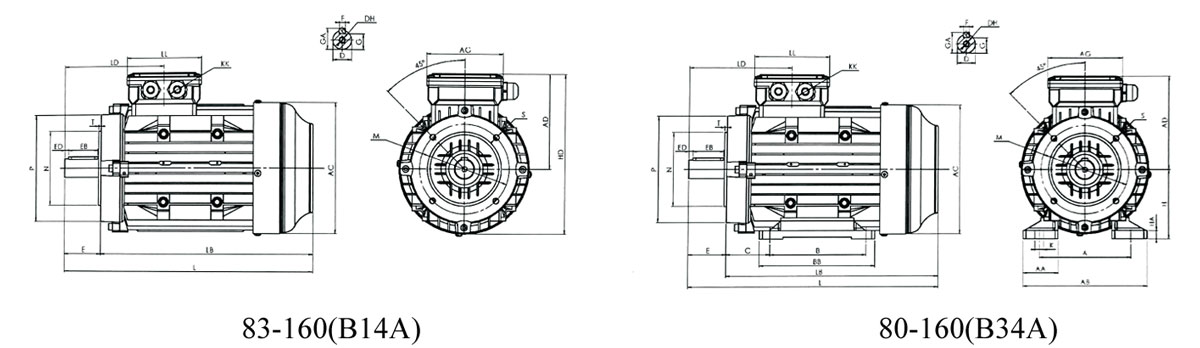

External dimensions IM B14A H80-160

Type	Poles	AC	AD	AG	D	DH	E	EB	ED	F	G	GA	HD	KK	L	LB	LD	LL	M	N	P	S	T
80	2, 4, 6, 8	158	147	104	19	M6×16	40	30	5	6	15.5	21.5	208	2-M25×1.5	290	250	75	104	100	80	120	M6	3
90S	2, 4, 6, 8	175	154.5	104	24	M8×19	50	40	5	8	20	27	227.5	2-M25×1.5	325	275	95	104	115	95	140	M8	3
90L	2, 4, 6, 8	175	154.5	104	24	M8×19	50	40	5	8	20	27	227.5	2-M25×1.5	350	300	95	104	115	95	140	M8	3
100L	2, 4, 6, 8	198	166	104	28	M10×22	60	50	5	8	24	31	255	2-M25×1.5	398	338	88.5	104	130	110	160	M8	3.5
112M	2, 4, 6, 8	219	182	124	28	M10×22	60	50	5	8	24	31	275.5	2-M32×1.5	447	387	92	114	130	110	160	M8	3.5
132S	2, 4, 6, 8	258	203	124	38	M12×28	80	65	7.5	10	33	41	317	2-M32×1.5	475	395	100	114	165	130	200	M10	3.5
132M	4, 6, 8	258	203	124	38	M12×28	80	65	7.5	10	33	41	317	2-M32×1.5	513	433	100	114	165	130	200	M10	3.5
160M	2, 4, 6, 8	315	251	162	42	M16×36	110	90	10	12	37	45	399.5	2-M40×1.5	609	499	158.5	154	215	180	250	M12	4
160L	2, 4, 6, 8	315	251	162	42	M16×36	110	90	10	12	37	45	399.5	2-M40×1.5	653	543	158.5	154	215	180	250	M12	4

External dimensions IM B34A H80-160

Type	Poles	A	AA	AB	AC	AD	AG	B	BB	C	D	DH	E	EB	ED	F	G	GA	H	HA	K	KK	L	LB	LD	LL	M	N	P	S	T
80	2, 4, 6, 8	125	35	160	158	147	104	100	150	50	19	M6×16	40	30	5	6	15.5	21.5	80	10	4-Φ10	2-M25×1.5	304	264	112	104	100	80	120	M6	3
90S	2, 4, 6, 8	140	36	176	175	155	104	100	161	56	24	MB×19	50	40	5	8	20	27	90	12	4-Φ10	2-M25×1.5	336	286	130	104	115	95	140	M8	3
90L	2, 4, 6, 8	140	36	176	175	155	104	125	186	56	24	MB×19	50	40	5	8	20	27	90	12	4-Φ10	2-M25×1.5	361	311	130	104	115	95	140	M8	3
100L	2, 4, 6, 8	160	40	200	198	166	104	140	213	63	28	M10×22	60	50	5	8	24	31	100	14	4-Φ12	2-M25×1.5	406	346	139	104	130	110	160	M8	3.5
112M	2, 4, 6, 8	190	50	240	219	182	124	140	225	70	28	M10×22	60	50	5	8	24	31	112	15	4-Φ12	2-M32×1.5	452	392	147	114	130	110	160	M8	3.5
132S	2, 4, 6, 8	216	55	262	258	203	124	140	200	89	38	M12×28	80	65	7.5	10	33	41	132	18	4-Φ12	2-M32×1.5	470	3990	172	114	165	130	200	M10	3.5
132M	4, 6, 8	216	55	262	258	203	124	178	238	89	38	M12×28	80	65	7.5	10	33	41	132	18	4-Φ12	2-M32×1.5	508	428	172	114	165	130	200	M10	3.5
160M	2, 4, 6, 8	254	65	314	315	251	162	210	260	108	42	M16×36	110	90	10	12	37	45	160	20	4-Φ14.5	2-M40×1.5	608	498	256	154	215	180	250	M12	4
160L	2, 4, 6, 8	254	65	314	315	251	162	254	304	108	42	M16×36	110	90	10	12	37	45	160	20	4-Φ14.5	2-M40×1.5	652	542	256	154	215	180	250	M12	4

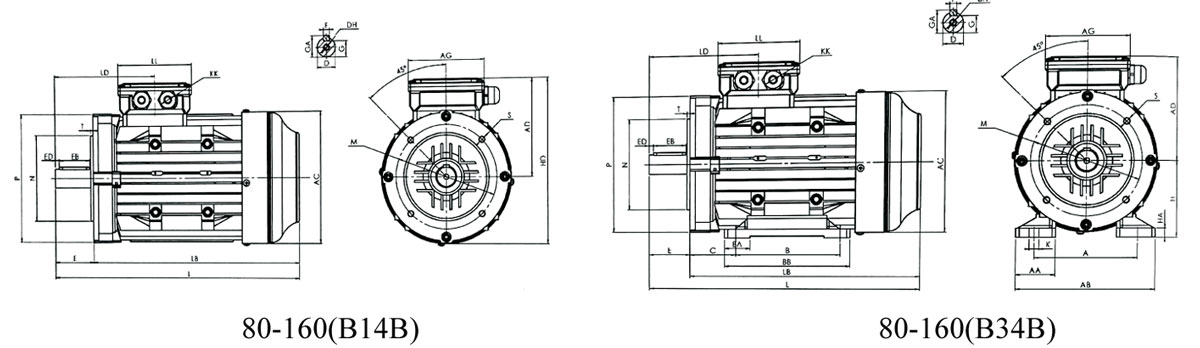

External dimensions IM B14B H80-160

Type	Poles	AC	AD	AG	D	DH	E	EB	ED	F	G	GA	HD	KK	L	LB	LD	LL	M	N	P	S	T
80	2, 4, 6, 8	158	147	104	19	M6×16	40	30	5	6	15.5	21.5	209	2-M25×1.5	290	250	75	104	130	110	160	M8	3.5
90S	2, 4, 6, 8	175	155	104	24	M8×19	50	40	5	8	20	27	227.5	2-M25×1.5	325	275	95	104	130	110	160	M8	3.5
90L	2, 4, 6, 8	175	155	104	24	M8×19	50	40	5	8	20	27	227.5	2-M25×1.5	350	300	95	104	130	110	160	M8	3.5
100L	2, 4, 6, 8	198	166	104	28	M10×22	60	50	5	8	24	31	256	2-M25×1.5	398	338	88.5	104	165	130	200	M10	3.5
112M	2, 4, 6, 8	219	182	124	28	M10×22	60	50	5	8	24	31	275.5	2-M32×1.5	447	387	92	114	165	130	200	M10	3.5
132S	2, 4, 6, 8	258	203	124	38	M12×28	80	65	7.5	10	33	41	317	2-M32×1.5	475	395	100	114	215	180	250	M12	4
132M	4, 6, 8	258	203	124	38	M12×28	80	65	7.5	10	33	41	317	2-M32×1.5	513	433	100	114	215	180	250	M12	4
160M	2, 4, 6, 8	315	251	162	42	M16×36	110	90	10	12	37	45	399.5	2-M40×1.5	609	499	158.5	154	265	230	300	M12	4
160L	2, 4, 6, 8	315	251	162	42	M16×36	110	90	10	12	37	45	399.5	2-M40×1.5	653	543	158.5	154	265	230	300	M12	4

External dimensions IM B34B H80-160

Type	Poles	A	AA	AB	AC	AD	AG	B	BB	C	D	DH	E	EB	ED	F	G	GA	H	HA	K	KK	L	LB	LD	LL	M	N	P	S	T
80	2, 4, 6, 8	125	35	160	158	147	104	100	150	50	19	M6×16	40	30	5	6	15.5	22	80	10	4-Φ10	2-M25×1.5	304	264	112	104	130	110	160	M8	3.5
909	2, 4, 6, 8	140	36	176	175	155	104	100	161	56	24	M8×19	50	40	5	8	20	27	90	12	4-Φ10	2-M25×1.5	336	286	130	104	130	110	160	M8	3.5
90L	2, 4, 6, 8	140	36	176	175	155	104	125	186	56	24	M8×19	50	40	5	8	20	27	90	12	4-Φ10	2-M25×1.5	361	311	130	104	130	110	160	M8	3.5
100L	2, 4, 6, 8	160	40	200	198	166	104	140	213	63	28	M10×22	60	50	5	8	24	31	100	14	4-Φ12	2-M25×1.5	406	346	139	104	165	130	200	M10	3.5
112M	2, 4, 6, 8	190	50	240	219	182	124	140	225	70	28	M10×22	60	50	5	8	24	31	112	15	4-Φ12	2-M32×1.5	452	392	147	114	165	130	200	M10	3.5
1325	2, 4, 6, 8	216	55	262	258	203	124	140	200	89	38	M12×28	80	65	7.5	10	33	41	132	18	4-Φ12	2-M32×1.5	470	3990	172	114	215	180	250	M12	4
132M	4, 6, 8	216	65	262	258	203	124	178	238	89	38	M12×28	80	65	7.5	10	33	41	132	18	4-Φ12	2-M32×1.5	508	428	172	114	215	180	250	M12	4
160M	2, 4, 6, 8	254	65	314	315	251	162	210	260	108	42	M16×36	110	90	10	12	37	45	160	20	4-Φ14.5	2-M40×1.5	608	498	256	154	265	230	300	M12	4
160L	2, 4, 6, 8	254	65	314	315	251	162	254	304	108	42	M16×36	110	90	10	12	37	45	160	20	4-Φ14.5	2-M40×1.5	652	542	256	154	265	230	300	M12	4

Advantages of IE3/IE4 Three-Phase Asynchronous Motor

High operational efficiency and energy saving;
Good startup performance;
Stable speed and good speed regulation performance;
Low noise, low vibration;
Strong adaptability and wide application;
Easy maintenance and long service life;
Efficient Energy Saving and Environmental Protection;
Strong protective performance.

Get In Touch

Contact Ouruian for Permanent Magnet Synchronous Motor



Contact With Us:

E-mail: market@ouruian.com


Have a Questions? Call Us:

+86-400-658-5088


Add:

No. 3777, Yitianmen Street, High-tech Zone, Tai'an City, Shandong Province, China

Leave a Message

Related High-speed Motor

Latest Blogs and News from Ouruian
