YVF2 Three-Phase Variable Frequency and Adjusting Speed Motor

The YVF2 series frequency conversion speed regulation dedicated three-phase asynchronous motor is a combination of frequency conversion speed regulation dedicated three-phase asynchronous motor and electronic frequency converter, which can achieve stepless speed regulation in the range of 150-2750rpm (4-pole). It is an ideal power for mechanical equipment with large-scale stepless speed regulation requirements.

Widely used in industries such as transportation, metallurgy, textiles, printing and dyeing, chemical industry, mining, fans, water pumps, etc.

Its electrical performance and installation dimensions are manufactured in accordance with the national standard JB/T7118 and are in line with international IEC standards.

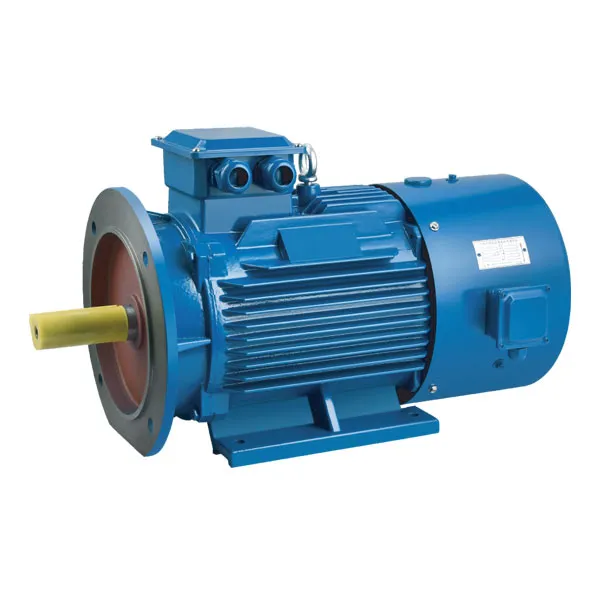

  • yvf2 three phase variable frequency and adjusting speed motor china
  • yvf2 three phase variable frequency and adjusting speed motor china

Technical Parameter of YVF2 Three-Phase Variable Frequency and Adjusting Speed Motor

Type

Output

Current
(A)

Rated Torque
(Nm)

Frequency at

constant torque

(Hz)

Frequency at

constart power

(Hz)

Is/ln

Ts/Tn

Tmax/Tn

Tmin/Tn

KW

Hp

80M1-4

0.55

0.75

1.5

3.5

5-50

50-100

2

10

2.8

1.7

80M2-4

0.75

1

2

4.7

5-50

50-100

2

10

2.8

1.6

90S-4

1.1

1.5

2.8

7

5-50

50-100

2

10

2.8

1.6

90L-4

1.5

2

3.7

9.5

5-50

50-100

2

10

2.8

1.6

100L1-4

2.2

3

5.1

14

5-50

50-100

2

10

2.8

1.5

100L2-4

3

4

6.8

19

5-50

50-100

2

10

2.8

1.5

112M-4

4

5.5

8.7

25.4

5-50

50-100

2

10

2.8

1.5

132S-4

5.5

7.5

11.4

35

5-50

50-100

2

10

2.8

1.4

132M-4

7.5

10

15.3

47.7

5-50

50-100

2

10

2.8

1.4

160M-4

11

15

22.1

70

5-50

50-100

2

10

2.8

1.4

160L-4

15

20

30.1

95.5

5-50

50-100

2

10

2.8

1.4

180M-4

18.5

25

35.4

117.1

5-50

50-100

2

10

2.8

1.2

180L-4

22

30

41.6

140.9

5-50

50-100

2

10

2.8

1.2

200L-4

30

40

55.9

190.9

5-50

50-100

2

10

2.8

1.2

225S-4

37

50

68.2

235.5

5-50

50-100

2

10

2.8

1.2

225M-4

45

60

82.5

286.4

5-50

50-100

2

10

2.8

1.1

250M-4

55

75

101

350.1

5-50

50-100

1.7

10

2.8

1.1

280S-4

75

100

132.3

477.1

3-50

50-100

1.7

10

2.8

1

280M-4

90

125

157.4

572.9

3-50

50-100

1.7

10

2.8

1

315S-4

110

150

191.4

700.2

3-50

50-100

1.7

10

2.8

1

315M-4

132

180

227.6

840.3

3-50

50-100

1.7

10

2.8

1

315L1-4

160

220

274.2

1018.5

3-50

50-100

1.7

10

2.8

1

315L2-4

200

270

341.6

1273.2

3-50

50-100

1.7

10

2.8

0.9


Operation Condition of YVF2 Three-Phase Variable Frequency and Adjusting Speed Motor

Environmental temperature: -15℃~40℃

Altitude: not exceeding 1000 meters

Rated voltage: 380V, 400V, 415V

Rated frequency: 50HZ

Connection method: Output≤55KW, 'Y'connection

                                  Output>55kW, '△'connection

Work System: Continuous Work System(S1)

Protection level: IP54/IP55

Insulation level: Class B/Class F

Cooling method: IC416
