YD Variable Frequency Three-Phase Asynchronous Motor

The YD series motors use winding pole changing method to achieve speed conversion, and their performance indicators comply with international IEC standards.

Widely used in various graded speed regulating mechanical equipment, it makes the whole machine compact in structure, reduces noise, and saves energy.

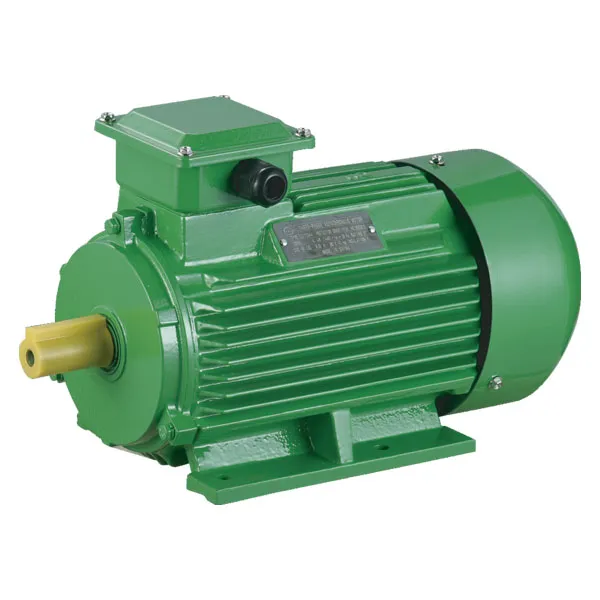

  • yd variable frequency three phase asynchronous motor china
  • yd variable frequency three phase asynchronous motor china

Technical Parameter of YD Variable Frequency Three-Phase Asynchronous Motor

YD Technical Parameter

Type

Output
(KW)

Current
(A)

Power Factor
(cosΦ)

Eff
(%)

Rated Speed
(r/min)

Is/ln

Ts/Tn

Tmax/Tn

YD801

4

2

0.45
0.55

1.4
1.5

0.74
0.85

66

65

1420

2860

6.5

7

1.5
1.6

1.8
1.8

YD802

4

2

0.55
0.75

1.7

2

0.74
0.85

68

66

1420

2860

6.5

7

1.5
1.6

1.8
1.8

YD90S

4

2

0.85
1.1

2.3
2.8

0.77
0.84

74

73

1430

2850

6.5

7

1.5
1.6

1.8

1.8

YD90L

4

2

1.3
1.8

3.3
4.3

0.78
0.84

76

74

1430

2850

6.5

7

1.5
1.6

1.8
1.8

YD100L1

4

2

2
2.4

4.8
5.6

0.81
0.86

78

76

1430

2850

6.5

7

1.5
1.6

1.8
1.8

YD100L2

4

2

2.4

3

5.6
6.7

0.83
0.89

79

77

1430

2850

6.5

7

1.5
1.6

1.8
1.8

YD¹12M

4

2

3.3

4

7.4
8.6

0.83
0.88

81

80

1450

2860

6.5

7

1.5
1.6

1.8
1.8

YD132S

4

2

4.5
5.5

9.8
11.9

0.84
0.88

83

79

1450

2860

6.5

7

1.5
1.6

1.8
1.8

YD132M

4

2

6.5

8

13.8
17.1

0.85
0.89

84

80

1450

2880

6.5

7

1.5
1.6

1.8
1.8

YD160M

4

2

9
11

18.5
22.9

0.85
0.89

87

82

1460

2920

6.5

7

1.5
1.6

1.8
1.8

YD160L

4

2

11

14

22.3
28.8

0.86
0.90

87

82

1460

2920

6.5

7

1.5
1.6

1.8
1.8

YD180M

4

2

14
18.5

29.4
36.7

0.87
0.90

89

85

1470

2940

6.5

7

1.5
1.6

1.8
1.8

YD180L

4

2

18.5

22

25.9
42.7

0.88
0.91

89

86

1470

2940

6.5

7

1.5
1.6

1.8
1.8

YD200L

4

2

26

30

49.9
58.3

0.89
0.92

89

85

1470

2950

6.5

7

1.4
1.4

1.8
1.8

YD225S

4

2

32

37

60.7
71.7

0.89
0.92

90

86

1480

2960

6.5

7

1.4
1.4

1.8
1.8

YD225M

4

2

37

45

69.4
86.4

0.89
0.92

91

87

1480

2960

6.5

7

1.4
1.4

1.8
1.8

YD250M

4

2

45

55

84.4

103.2

0.89
0.92

91

88

1480

2960

6.5

7

1.4
1.4

1.8
1.8

YD280S

4

2

60
72

111.3
135.1

0.90
0.92

91

88

1480

2970

6.5

7

1.4
1.4

1.8
1.8

YD280M

4

2

72
80

133.6
152.2

0.90
0.93

91

88

1480

2970

6.5

7

1.4
1.4

1.8
1.8

YD90S

6

4

0.65
0.85

2.2
2.3

0.70
0.79

64

70

920
1420

6
6.5

1.4
1.3

1.8
1.8

YD90L

6

4

0.85
1.1

2.8

3

0.70
0.79

68

71

930
1420

6
6.5

1.4
1.3

1.8
1.8

YD100L1

6

4

1.3
1.8

3.8
4.4

0.70
0.80

74

77

940

1440

6
6.5

1.4
1.3

1.8
1.8

YD100L2

6

4

1.5
2.2

4.3
5.4

0.70
0.80

75

77

940
1440

6
6.5

1.4
1.3

1.8

1.8

YD112M

6

4

2.2
2.8

5.7
6.7

0.75
0.82

77

77

960
1440

6
6.5

1.4
1.3

1.8
1.8

Type

Output
(KW)

Current
(A)

Power Factor
(cosΦ)

Eff
(%)

Rated Speed
(r/min)

Is/In

Ts/Tn

Tmax/Tn

YD132S

6

4

3

4

7.7
9.5

0.70
0.82

79

80

960
1440

6
6.5

1.4
1.3

1.8
1.8

YD132M

6

4

4
5.5

9.8
12.3

0.76
0.85

81

80

960
1440

6
6.5

1.4
1.3

1.8
1.8

YD160M

6

4

6.5

8

15.1
17.4

0.78
0.85

84

83

970
1460

6
6.5

1.4
1.3

1.8
1.8

YD160L

6

4

9
11

20.6
23.4

0.78
0.85

85

84

970
1460

6
6.5

1.4
1.3

1.8
1.8

YD180M

6

4

11

14

25.9
29.8

0.78
0.85

85

85

980
1470

6
6.5

1.4
1.3

1.8
1.8

YD180L

6

4

13

16

29.4
33.6

0.78
0.85

86

85

980
1470

6
6.5

1.4
1.3

1.8
1.8

YD200L

6

4

18.5

22

41.4
44.7

0.78
0.86

87

87

980
1460

6.5

7

1.4
1.3

1.8
1.8

YD225S

6

4

22

28

44.2
56.2

0.86
0.87

88

87

980
1470

6.5

7

1.4
1.3

1.8
1.8

YD225M

6

4

26

34

52.2

66

0.86
0.9

88

87

980
1470

6.5

7

1.4
1.3

1.8
1.8

YD250M

6

4

32

42

62.1
74.7

0.87
0.91

90

88

980
1470

6.5

7

1.4
1.3

1.8
1.8

YD280S

6

4

42

55

81.5
104.2

0.87
0.90

90

89

980
1470

6.5

7

1.4
1.3

1.8
1.8

YD280M

6

4

55

72

106.7
138.1

0.87
0.89

90

89

990
1480

6.5

7

1.4
1.3

1.8
1.8

YD90L

8

4

0.45
0.75

1.9
1.92

0.63
0.87

58

72

680
1420

5.5
6.5

1.5
1.5

1.8
1.8

YD100L

8

4

0.85
1.5

3.1
3.5

0.63
0.88

68

75

700
1420

5.5
6.5

1.5
1.5

1.8
1.8

YD112M

8

4

1.5
2.4

5
5.3

0.63
0.88

72

78

700
1420

5.5
6.5

1.5
1.5

1.8
1.8

YD132S

8

4

2.2
3.3

7
7.1

0.64
0.88

75

80

720
1440

5.5
6.5

1.5
1.5

1.8
1.8

YD132M

8

4

3
4.5

9
9.4

0.65
0.88

78

82

720
1440

5.5
6.5

1.5
1.5

1.8
1.8

YD160M

8

4

5
7.5

13.9
15.2

0.66
0.89

83

84

730
1450

5.5
6.5

1.5
1.5

1.8
1.8

YD160L

8

4

7
11

19
21.8

0.66
0.89

85

86

730
1450

5.5
6.5

1.5
1.5

1.8
1.8

YD180L

8

4

11

17

26
31.5

0.74
0.92

86

87

730
1470

6

7

1.5
1.5

1.8
1.8

YD200L1

8

4

14

22

33
41.3

0.74
0.92

86

88

740
1470

6

7

1.5
1.5

1.8
1.8

YD200L2

8

4

17

26

40.1
48.8

0.74
0.92

87

88

740
1470

6

7

1.5
1.5

1.8
1.8

YD225M

8

4

24

34

53.2
66.7

0.77
0.88

89

88

740
1470

6

7

1.4
1.3

1.8
1.8

YD250M

8

4

30

42

64.9
78.8

0.78
0.91

90

89

740
1480

6

7

1.4
1.3

1.8
1.8

Type

Output
(KW)

Current
(A)

Power Factor
(cosΦ)

Eff
(%)

Rated Speed
(r/min)

Is/ln

Ts/Tn

Tmax/Tn

YD280S

8

4

40

55

83.5

102

0.80
0.91

91

90

740
1480

6

7

1.4
1.3

1.8
1.8

YD280M

8

4

47

67

96.9
122.9

0.81
0.92

91

90

740
1480

6

7

1.4
1.3

1.8
1.8

YD90S

8

6

0.35
0.45

1.6
1.4

0.60
0.72

56

70

680

930

5

6

1.5
1.5

1.8
1.8

YD90L

8

6

0.45
0.65

1.9
1.9

0.60
0.73

59

71

680

930

5

6

1.5
1.5

1.8
1.8

YD100L

8

6

0.75
1.1

2.9
3.1

0.60
0.73

65

75

710

950

5

6

1.5
1.5

1.8
1.8

YD112M

8

6

1.3
1.8

4.5
4.8

0.61
0.73

72

78

710

950

5

6

1.5
1.5

1.8
1.8

YD132S

8

6

1.8
2.4

5.8
6.2

0.62
0.73

75

80

730

970

5

6

1.5
1.5

1.8
1.8

YD132M

8

6

2.6
3.7

8.2
9.4

0.62
0.73

78

82

730

970

5

6

1.5
1.5

1.8
1.8

YD160M

8

6

4.5

6

13.3
14.7

0.62
0.73

83

85

930

980

5

6

1.5
1.5

1.8
1.8

YD160L

8

6

6

8

17.5
19.4

0.62
0.73

84

86

930

980

5

6

1.5
1.5

1.8
1.8

YD180M

8

6

7.5

10

21.9
24.2

0.62
0.73

84

86

930

980

5

6

1.5
1.5

1.8
1.8

YD180L

8

6

9
12

24.8
28.3

0.65
0.75

85

86

730

980

5

6

1.5
1.5

1.8
1.8

YD200L1

8

6

12

17

32.5
39.1

0.65
0.76

86

87

730

980

5

6

1.5
1.5

1.8
1.8

YD200L2

8

6

15

20

40.3
45.4

0.65
0.76

87

88

730

980

5

6

1.5
1.5

1.8
1.8

YD100L

6/4/2

0.75/1.3/1.8

2.62/3.66/4.53

0.65/0.75/0.85

67/72/71

940/1420/2880

5.5/6/7

1.8/1.6/1.6

1.8

YD112M

6/4/2

1.1/2/2.4

3.52/5.14/5.8

0.65/0.81/0.85

73/74/74

940/1440/2890

5.5/6/7

1.7/1.4/1.6

1.8

YD132S

6/4/2

1.8/2.6/3

5.14/6.1/7.38

0.71/0.83/0.87

75/78/71

940/1440/2900

5.5/6/7

1.4/1.3/1.7

1.8

YD132M1

6/4/2

2.2/3.3/4

6.03/7.46/8.79

0.72/0.84/0.91

77/80/76

940/1440/2900

5.5/6/7

1.3/1.3/1.7

1.8

YD132M2

6/4/2

2.6/4/5

6.86/9.04/10.8

0.72/0.84/0.91

80/80/77

940/1440/2900

5.5/6/7

1.5/1.4/1.7

1.8

YD160M

6/4/2

3.7/5/6

9.52/11.2/13.2

0.72/0.84/0.91

81/81/76

970/1490/2930

5.5/6/7

1.5/1.3/1.4

1.8

YD160L

6/4/2

4.5/7/9

11.4/15.1/18.8

0.72/0.85/0.92

83/83/79

910/1460/2930

5.5/6/7

1.5/1.2/1.3

1.8

YD112M

8/4/2

0.65/2/2.4

2.66/5.14/5.8

0.63/0.81/0.85

59/74/74

710/1440/2900

4.5/6/7

1.4/1.3/1.2

1.8

YD132S

8/4/2

1/2.6/3

3.16/6.1/7.08

0.61/0.83/0.87

69/78/74

710/1440/2900

4.5/6/7

1.4/1.2/1.4

1.8

YD132M

8/4/2

1.3/3.7/4.5

4.56/8.37/10

0.61/0.84/0.91

71/80/75

710/1440/2900

4.5/6/7

1.5/1.3/1.4

1.8

YD160M

8/4/2

2.2/5/6

7.55/11.2/13.2

0.59/0.84/0.91

75/81/76

720/1460/2930

4.5/6/7

1.4/1.3/1.4

1.8

YD160L

8/4/2

2.8/7/9

9.21/15.1/18.8

0.6/0.85/0.92

77/83/79

720/1460/2930

4.5/6/7

1.3/1.2/1.3

1.8

YD112M

8/4/2

0.85/1/1.5

3.72/3.06/3.53

0.56/0.73/0.86

62/68/75

710/940/1400

5.5/6.5/7

1.4/1.2/1.4

1.8

YD132S

8/4/2

1.1/1.5/1.8

4.1/4.22/4.03

0.6/0.73/0.87

68/74/78

710/940/1440

5.5/6.5/7

1.4/1.3/1.3

1.8

YD132M1

8/4/2

1.5/2/2.2

5.18/5.41/4.87

0.62/0.73/0.87

71/77/79

710/940/1440

5.5/6.5/7

1.3/1.5/1.4

1.8

YD132M2

8/4/2

1.8/2.6/3

6.13/6.84/6.55

0.62/0.74/0.87

72/78/80

710/940/1440

5.5/6.5/7

1.5/1.5/1.5

1.8

YD160M

8/4/2

8.3/4/5.5

10.2/9.87/11.6

0.62/0.76/0.87

79/81/83

720/970/1460

5.5/6.5/7

1.7/1.4/1.5

1.8

YD160L

8/4/2

4.5/6/7.5

13.8/14.5/15.6

0.62/0.76/0.87

80/83/84

720/970/1460

5.5/6.5/7

1.6/1.6/1.5

1.8


Advantages of YD Variable Frequency Three-Phase Asynchronous Motor

  • Superior speed regulation performance;

  • Efficient and energy-saving;

  • Good startup performance;

  • Reliable and durable performance;

  • Good interchangeabilty;

  • Low noise and minimal vibration;

  • Easy maintenance and long service life.


Conditions of Use

  • Center height of machine base: 80~280mm

  • Power range: 0.35~82KW

  • Rated voltage: 380V(other voltages require separate agreement)

  • Rated frequency: 50Hz(or 60Hz)

  • Protection level: IP54(or IP55)

  • Insulation grade: B/F grade

  • Work schedule: S1

Get In Touch

Contact Ouruian for Permanent Magnet Synchronous Motor

Leave a Message

Your Name *

Your Email *

Your Phone

Country

Your Message *

Related High-speed Motor
Latest Blogs and News from Ouruian
We use cookies to offer you a better browsing experience, analyze site traffic and personalize content. Part of the tracking is necessary to ensure SEO effectiveness,
By using this site, you agree to our use of cookies. Visit our cookie policy to learn more.
Reject Accept
