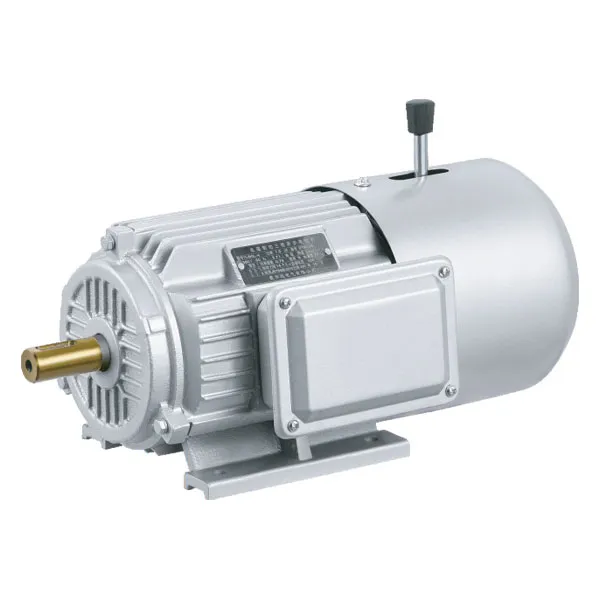

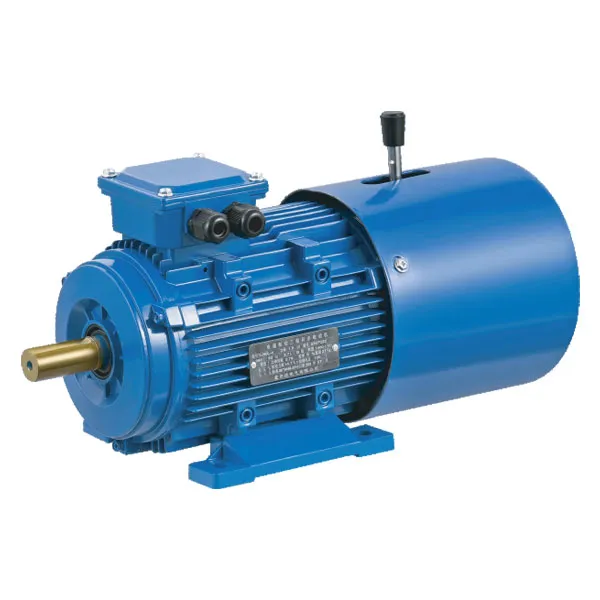

Name: YEJ2 Electromagnetic Brake Three-Phase Asynchronous Motor
Brand: Shandong Ouruian Electric Co., Ltd.
Availability: InStock

Technical Parameter of YEJ2 Electromagnetic Brake Three-Phase Asynchronous Motor

Type	Output		Rated Speed (r/min)	Current (A)	Eff (%)	Power Factor (cosΦ)	Is/In	Ts/Tn	Tmax/Tn	Exciting Voltage(v)	Static braking torque not less than (N.m)	No-load brake lag time limitation (s)
	KW	Hp
Technical data-YEJ series motor-2 Poles-380V/50Hz
801-2	0.75	1	2825	1.9	73	0.84	7	2.2	2.2	100	7.36	0.2
802-2	1.1	1.5	2825	2.6	76	0.86	7	2.2	2.2	100	7.36	0.2

90S-2	1.5	2	2840	3.4	79	0.85	7	2.2	2.2	100	14.7	0.25
90L-2	2.2	3	2840	4.7	82	0.86	7	2.2	2.2	100	14.7	0.25
100L-2	3	4	2880	6.4	82	0.87	7	2.2	2.2	100	29.4	0.3
112M-2	4	5.5	2890	8.2	85.5	0.87	7	2.2	2.2	170	39.2	0.35
132S1-2	5.5	7.5	2900	11.1	86.2	0.88	7	2.2	2.2	170	73.6	0.4
132S2-2	7.5	10	2900	15	86.2	0.88	7	2.2	2.2	170	73.6	0.4
160M1-2	11	15	2930	21.8	87.2	0.88	7	2.2	2.2	170	147.2	0.5
160M2-2	15	20	2930	29.4	88.2	0.88	7	2.2	2.2	170	147.2	0.5
160L-2	18.5	25	2930	35.5	89	0.89	7	2.2	2.2	170	147.2	0.5
180M-2	22	30	2940	42.2	89	0.89	7	2.2	2.2	170	215.8	0.6
200L1-2	30	40	2950	56.9	90	0.89	7	2.2	2.2	170	294.3	0.7
200L2-2	37	50	2950	69.8	90.5	0.89	7	2.2	2.2	170	294.3	0.7
225M-2	45	60	2970	83.9	91.5	0.89	7	2.2	2.2	170	441.5	0.8
Technical data-YEJ series motor-4 Poles-380V/50Hz
801-4	0.55	0.75	1390	1.6	70.5	0.76	6.5	2.2	2.2	100	7.36	0.2
802-4	0.75	1	1390	2.1	72.5	0.76	6.5	2.2	2.2	100	7.36	0.2
90S-4	1.1	1.5	1400	2.7	79	0.78	6.5	2.2	2.2	100	14.7	0.25

90L-4	1.5	2	1400	3.7	79	0.79	6.5	2.2	2.2	100	14.7	0.25
100L1-4	2.2	3	1420	5.0	81	0.82	7	2.2	2.2	100	29.4	0.3
100L2-4	3	4	1420	6.8	82.5	0.81	7	2.2	2.2	100	29.4	0.3
112M-4	4	5.5	1440	8.8	84.5	0.82	7	2.2	2.2	170	39.2	0.35
132S-4	5.5	7.5	1440	11.6	85.5	0.84	7	2.2	2.2	170	73.6	0.4
132M-4	7.5	10	1440	15.4	87	0.85	7	2.2	2.2	170	73.6	0.4
160M-4	11	15	1460	22.6	88	0.84	7	2.2	2.2	170	147.2	0.5
160L-4	15	20	1460	30.3	88.5	0.85	7	2.2	2.2	170	147.2	0.5
180M-4	18.5	25	1470	35.9	91	0.86	7	2.2	2.2	170	215.8	0.6
180L-4	22	30	1470	42.5	91.5	0.86	7	2.2	2.2	170	215.8	0.6
200L-4	30	40	1470	56.8	92.5	0.87	7	2.2	2.2	170	294.3	0.7
225S-4	37	50	1480	69.8	91.8	0.87	7	2.2	2.2	170	414.5	0.8
225M-4	45	60	1480	84.2	92.3	0.88	7	2.2	2.2	170	414.5	0.8

Type	Output		Rated Speed (r/min)	Current (A)	Eff (%)	Power Factor (cosΦ)	Is/In	Ts/Tn	Tmax/Tn	Exciting Voltage(v)	Static braking torque not less than(N.m)	No-load brake lag time limitation (s)
	KW	Hp
Technical data-YEJ series motor-6 Poles-380V/50Hz
90S-6	0.75	1	910	2.3	72.5	0.7	6.0	2	2.2	100	14.7	0.25
90L-6	1.1	1.5	910	3.2	73.5	0.72	6.0	2	2	100	14.7	0.25
100L-6	1.5	2	940	4	77.5	0.74	6.0	2	2	100	29.4	0.3
112M-6	2.2	3	940	5.6	80.5	0.74	6.0	2	2	170	39.2	0.35
132S-6	3	4	960	7.2	83	0.76	6.5	2	2	170	73.6	0.4
132M1-6	4	5.5	960	9.4	84	0.77	6.5	2	2	170	73.6	0.4
132M2-6	5.5	7.5	960	12.6	85.3	0.78	6.5	2	2	170	73.6	0.4
160M-6	7.5	10	970	17	86	0.78	6.5	2	2	170	147.2	0.5
160L-6	11	15	970	24.6	86	0.78	6.5	2	2	170	147.2	0.5
180L-6	15	20	970	31.4	89.5	0.81	6.5	1.8	2	170	215.8	0.6
200L1-6	18.5	25	970	37.7	89.8	0.83	6.5	1.8	2	170	294.2	0.7
200L2-6	22	30	970	44.6	90.2	0.83	6.5	1.8	2	170	294.2	0.7
225M-6	30	40	980	59.5	90.2	0.85	6.5	1.8	2	170	441.5	0.8

Technical data-YEJ series motor-4 Poles-380V/50Hz
132S-8	2.2	3	710	5.8	81	0.71	5.5	2	2	170	73.6	0.4

132M-8	3	4	710	7.7	82	0.72	5.5	2	2.2	170	73.6	0.4
160M1-8	4	5.5	720	9.9	84	0.73	6.0	2	2	170	147.2	0.5


160M2-8	5.5	7.5	720	13.3	85	0.74	6.0	2	2	170	147.2	0.5

160L-8	7.5	10	720	17.3	86	0.75	5.5	2	2	170	147.2	0.5

180L-8	11	15	730	27.7	86.5	0.77	6.0	1.7	2	170	215.8	0.6

200L-8	15	20	730	34.1	88	0.76	6.0	1.8	2	170	294.3	0.7


225S-8	18.5	25	730	41.3	89.5	0.76	6.0	1.7	2	170	441.5	0.8

225M-8	22	30	730	47.6	90	0.78	6.0	1.8	2	170	441.5	0.8

External dimensions


(B3-63-355)Frame with feet and endshield without flange
(B35-63-355)Frame with feet and endshield with flange(with plain holes)
(B5-63-255)Frame without feet and endshield with flange(with plain holes)
Frame size	Flange No.	Poles	Mounting dimensions(mm)																Flange holes	Overall dimensions(mm)

			A	A/2	B	C	D	E	F	G	H	K	M	N	P	R	S	T		AB	AC	AD	HD	L
80M	FF165	2, 4	125	62.5	100	50	19	40	6	15.5	80	10	165	130	200	0	12.5	3.5	4	165	220	150	210	355
90S		2, 4, 6	140	70		56	24	50	8	20	90									180	240	160	250	380
90L					125																			405
100L	FF215		160	80	140	63	28	60		24	100	12	215	180	250		15	4		205	260	180	265	455
12M			190	95		70					112									245	280	190	285	475
132S	FF265	2, 4, 6, 8	216	108		89	38	80	10	33	132		265	230	300					280	300	190	335	550
32M					178																			596
160M	FF300		254	127	210	108	42	110	12	37	160	15	300	250	350		19	5		330	335	265	385	720
160L					254																			765
180M			279	139.5	240	121	48		14	42.5	180									355	380	285	460	825
180L					279																			875
200L	FF350		318	159	305	133	55		16	49	200	19	350	300	400					395	420	315	475	900
225S	FF400	4, 8	356	178	286	149	60	140	18	53	225		400	350	450					435	475	345	530	1000
225M		2			311		55	110	16	49														1000
		4, 6, 8					60	140	18	53														1030

Note: R is the distance from the flange mounting plate to the shaft extension shoulder.

Advantages of YEJ2 Electromagnetic Brake Three-Phase Asynchronous Motor

Beautiful appearance;
Sturdy structure;
Efficient and low noise;
Advantages such as low vibration;
Good startup performance;
Reliable and durable performance;
Easy maintenance and long service life.

Conditions of Use

Center height of machine base: 63-225mm

Controller power supply: The center height of the machine base

is H≤100mm, AC 220V(rectified 99V)

Center height of machine base: H≥112mm, AC 380V

(170V after rectification)

Power range: 0.12~45KW

Rated voltage: 380V(other voltages require separate agreement)

Rated frequency: 50Hz(or 60Hz)

Protection level: IP54(or IP55)

Insulation grade: B/F grade

Work schedule: S1
